Description

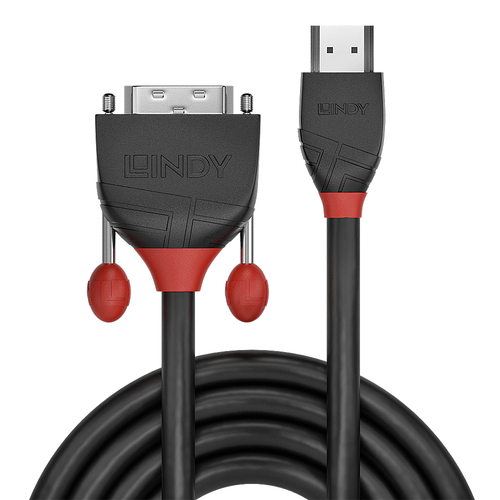

Lindy 1m HDMI to DVI Cable, Black Line, 1 m, HDMI Type A (Standard), DVI-D, Male, Male, Straight
From the Lines cable connectivity concept developed by Lindy, Black Line HDMI to DVI-D cables are fully featured, entry level connection solutions, perfect for connecting PCs to monitors or projectors.
Black Line HDMI to DVI-D cables feature triple shielded construction with 30AWG tinned copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.
The tough PVC housing incorporates an integrated finger grip for easy installation. Large thumb screws allow the DVI connector to be tightened into place without the need for a screwdriver and a flexible strain relief prolongs cable life.
Black Line HDMI to DVI-D cables support resolutions up to 1920x1200@60Hz including HDTV resolutions up to 1080p.
Black Line HDMI to DVI-D cables are available in lengths of 0.5m to 10m.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 36271 |
| Our part no. | 4R71006 |
| EAN | 4002888362719 |
| Category | Cables & Adapters › HDMI Cables & Extenders |
| Weight | 0.1 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Cable length | 1 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Data transfer rate | 4.95 Gbit/s |
| Bend radius (min) | 5.5 cm |
| Cable material | Tinned copper |
| Product colour | Black |
| Conductor material | Tinned copper |
| Nominal attenuation | 1 €“ 825Mhz 12db |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Connector housing material | Polyvinyl chloride (PVC) |
| Connector material | Nickel |
| Contact material | Brass |
| AWG wire size | 30 |
| Cable shielding | Aluminium braid |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Certificates | |
| Certification | RoHS, REACH, UL |
| Weight & dimensions | |
| Cable diameter | 5.5 mm |
| Connector 1 dimensions (WxDxH) | 21.4 x 34.2 x 12.7 mm |
| Connector 2 dimensions (WxDxH) | 36.8 x 44.5 x 12.5 mm |
| Packaging data | |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
