Description

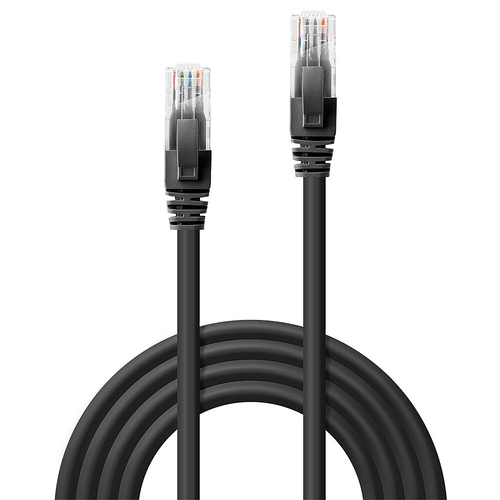

Lindy 3m Cat.6 U/UTP Network Cable, Black, 3 m, Cat6, U/UTP (UTP), RJ-45, RJ-45, Black

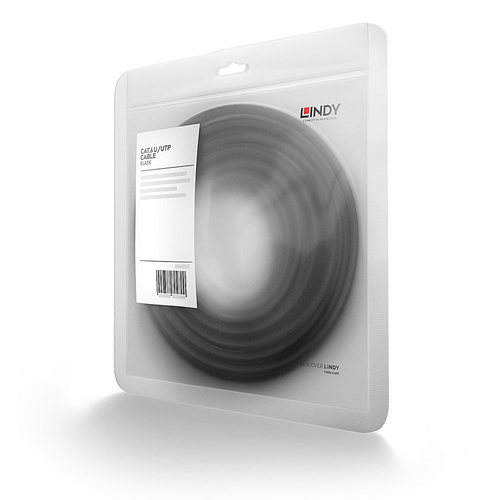

Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T. Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m. Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.

Specifications

BrandLINDY
Manufacturer part no.48079
Our part no.4R71348
EAN4002888480796
CategoryCables & Adapters › Network Cables
Weight0.1 kg
Features
Product colourBlack
Cable length3 m
Cable standardCat6
Cable shieldingU/UTP (UTP)
Connector 1RJ-45
Connector 2RJ-45
Connector 1 genderMale
Connector 2 genderMale
Connector contacts platingGold
Connector shieldingYes
Connector shield materialAluminium
Jacket materialPolyvinyl chloride (PVC)
Cable shapeRound
Conductor materialCopper
Connector housing materialPolycarbonate (PC)
Cabling technology10/100/1000Base-T(X)
Ethernet interface typeGigabit Ethernet
AWG wire size24
Data transfer rate1000 Mbit/s
Frequency250 MHz
Bend radius (min)6.9 cm
Snagless cable bootYes
Nominal attenuation32.8dB/100m @250MHz
Operational conditions
Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-20 - 75 °C
Certificates
CertificationRoHS, REACH, UL, California Proposition 65
Weight & dimensions
Outer diameter5.8 mm
Connector 1 dimensions (WxDxH)11.6 x 22.8 x 8.3 mm
Connector 2 dimensions (WxDxH)11.6 x 22.8 x 8.3 mm
Packaging content
Quantity per pack1 pc(s)
Packaging data
Package typePolybag
Logistics data
Harmonized System (HS) code84733080
