Description

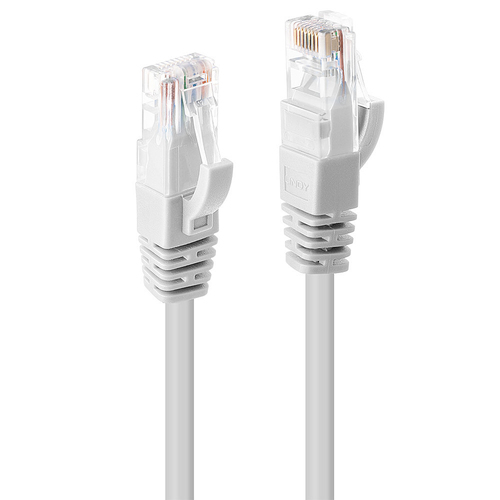

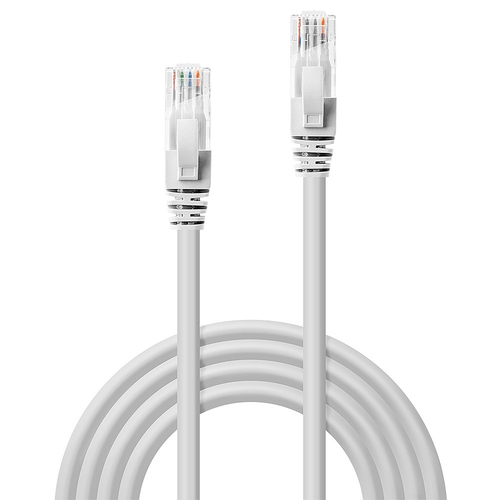

Lindy 0.5m CAT6 U/UTP Network Cable, White, 0.5 m, Cat6, U/UTP (UTP), RJ-45, RJ-45, White

Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T. Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m. Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.

Specifications

BrandLINDY
Manufacturer part no.48091
Our part no.4R71369
EAN4002888480918
CategoryCables & Adapters › Network Cables
Weight0 kg
Features
Product colourWhite
Cable length0.5 m
Cable standardCat6
Cable shieldingU/UTP (UTP)
Connector 1RJ-45
Connector 2RJ-45
Connector 1 genderMale
Connector 2 genderMale
Connector contacts platingGold
Jacket materialPolyvinyl chloride (PVC)
Conductor materialCopper
Cabling technology10/100/1000Base-T(X)
AWG wire size24
Frequency250 MHz
Bend radius (min)6.9 cm
Operational conditions
Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-20 - 75 °C
Certificates
CertificationRoHS, REACH, UL, California Proposition 65
Weight & dimensions
Outer diameter5.8 mm
Connector 1 dimensions (WxDxH)11.6 x 22.8 x 8.3 mm
Connector 2 dimensions (WxDxH)11.6 x 22.8 x 8.3 mm
Packaging data

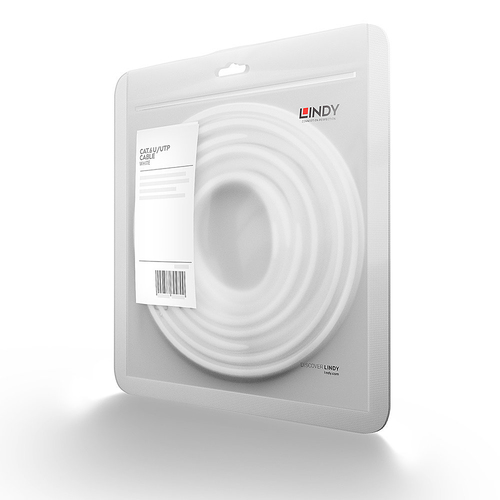

Package typePolybag
Logistics data
Harmonized System (HS) code84733080
