Description

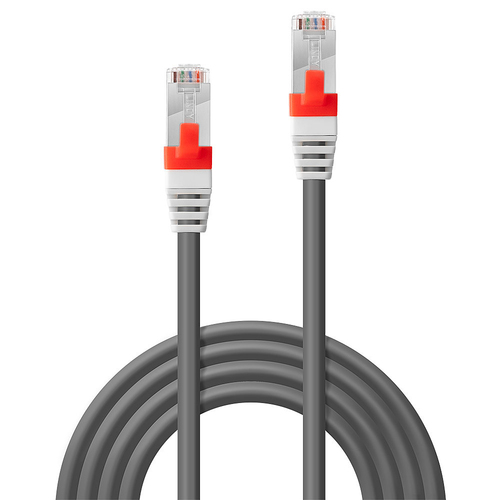

Lindy 3m Cat.6A S/FTP LSZH Network Cable, Grey, 3 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Grey

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T. Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The 100% Component test slip includedin each polybag ensures flawless compatibility between devices, each componentof the cable is individually tested helping to eliminate problems such asinsertion loss, return loss and crosstalk. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions. Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m. Available colours: Black, Blue, Grey, Red.

Specifications

BrandLINDY
Manufacturer part no.45354
Our part no.4R71407
EAN4002888453547
CategoryCables & Adapters › Network Cables
Weight0.1 kg
Features
Product colourGrey
Cable length3 m
Cable standardCat6a
Cable shieldingS/FTP (S-STP)
Connector 1RJ-45
Connector 2RJ-45
Connector 1 genderMale
Connector 2 genderMale
Connector contacts platingNickel/Gold
Connector shieldingYes
Connector shield materialAluminium/Polyester
Jacket materialLow smoke zero halogen (LSZH)
Conductor materialCopper
AWG wire size26
Frequency500 MHz
Bend radius (min)1.86 cm
Operational conditions
Operating temperature (T-T)-25 - 60 °C
Storage temperature (T-T)-25 - 60 °C
Certificates
CertificationRoHS, REACH, UL
Weight & dimensions
Outer diameter6.2 mm
Connector 1 dimensions (WxDxH)11.6 x 21.5 x 8.3 mm
Connector 2 dimensions (WxDxH)11.6 x 21.5 x 8.3 mm
Packaging data
Package typePolybag
Logistics data
Harmonized System (HS) code84733080
