Description

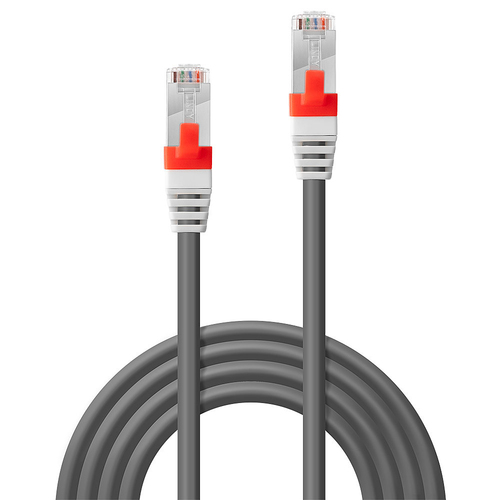

Lindy 5m Cat.6A S/FTP LSZH Network Cable, Grey, 5 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Grey
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T. Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The 100% Component test slip includedin each polybag ensures flawless compatibility between devices, each componentof the cable is individually tested helping to eliminate problems such asinsertion loss, return loss and crosstalk. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions. Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m. Available colours: Black, Blue, Grey, Red.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 45355 |
| Our part no. | 4R71411 |
| EAN | 4002888453554 |
| Category | Cables & Adapters › Network Cables |
| Weight | 0.2 kg |
| Features | |
| Product colour | Grey |
| Cable length | 5 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel/Gold |
| Connector shielding | Yes |
| Connector shield material | Aluminium/Polyester |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| Cabling technology | 10/100/1000Base-T(X) |
| AWG wire size | 26 |
| Frequency | 500 MHz |
| Bend radius (min) | 1.86 cm |
| Operational conditions | |
| Operating temperature (T-T) | -25 - 60 °C |
| Storage temperature (T-T) | -25 - 60 °C |
| Sustainability | |
| Doesn't contain | Halogen |
| Certificates | |
| Certification | RoHS, REACH, UL |
| Weight & dimensions | |
| Outer diameter | 6.2 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 21.5 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 21.5 x 8.3 mm |
| Packaging data | |

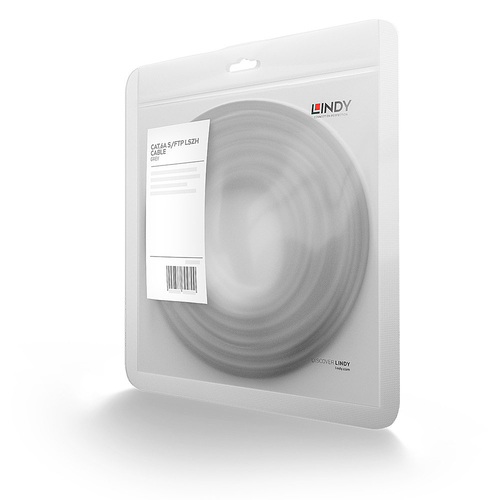

| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
