Description

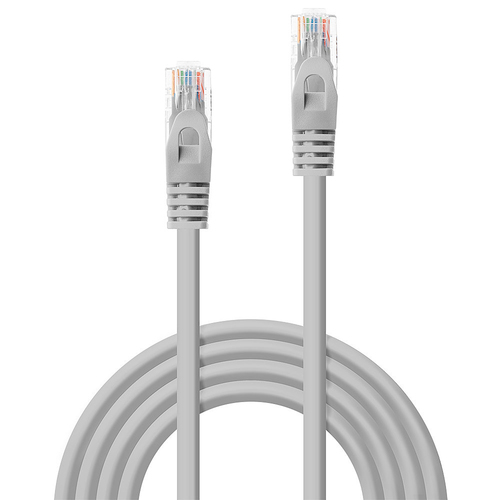

Lindy 3m Cat.5e U/UTP Network Cable, Grey, 3 m, Cat5e, U/UTP (UTP), RJ-45, RJ-45, Grey

Cat.5e U/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T. Cat.5e cable, designed for operating frequencies up to 100MHz. The unshielded version (U/UTP) is designed in its electrophysical parameters (NExT, FExT etc.) in such a way that it can be used for Gigabit Ethernet despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m.

Specifications

BrandLINDY
Manufacturer part no.48364
Our part no.4R72038
EAN4002888483643
CategoryCables & Adapters › Network Cables
Weight0 kg
Features
Product colourGrey
Cable length3 m
Cable standardCat5e
Cable shieldingU/UTP (UTP)
Connector 1RJ-45
Connector 2RJ-45
Connector 1 genderMale
Connector 2 genderMale
Connector contacts platingGold
Jacket materialPolyvinyl chloride (PVC)
Conductor materialCopper
Cable typeStraight-through cable
Cabling technology10/100/1000Base-T(X)
AWG wire size26
Data transfer rate1000 Mbit/s
Frequency100 MHz
Bend radius (min)5.7 cm
Operational conditions
Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-20 - 75 °C
Sustainability
Doesn't containHalogen
Certificates
CertificationRoHS, REACH, UL, California Proposition 65
Weight & dimensions
Outer diameter4.8 mm
Connector 1 dimensions (WxDxH)11.6 x 22.8 x 8.3 mm
Connector 2 dimensions (WxDxH)11.6 x 22.8 x 8.3 mm
Packaging data

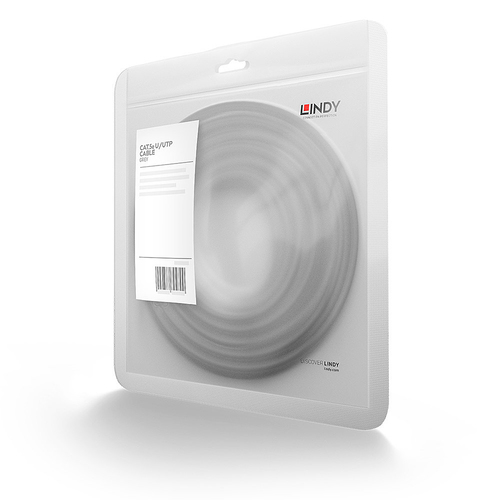

Package typePolybag
Logistics data
Harmonized System (HS) code84733080
