Description

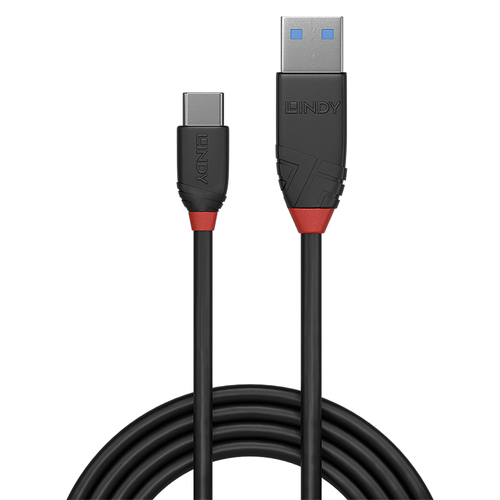

Lindy 0.5m USB 3.2 Type A to C Cable, 10Gbps, Black Line, 0.5 m, USB A, USB C, USB 3.2 Gen 1 (3.1 Gen 1), 10 Gbit/s, Black

The Black Line USB 3.2 Type A to C cables from Lindy's Cable Lines concept are fully featured, entry level high resolution connection solutions, perfect for home and small office use.

Black Line USB 3.2 Type A to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.

USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Black Line USB 3.2 Type A to C cables are available in the following lengths: 0.5m, 1m and 1.5m.

Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Specifications

BrandLINDY
Manufacturer part no.36915
Our part no.4R72292
EAN4002888369152
CategoryCables & Adapters › USB Cables & Adapters
Weight0 kg
Features
USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
Connector 1USB A
Connector 2USB C
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size26/30/30
Connector materialNickel
Contact materialPhosphor bronze
Connector contacts platingGold
Cable jacket materialPolyvinyl chloride (PVC)
Conductor materialTinned copper
Connector shieldingYes
Connector shield materialAluminium
Connector housing materialPolyvinyl chloride (PVC)
Maximum data transfer rate10000 Mbit/s
Maximum data transfer rate10 Gbit/s
Cable typeRound cable
Plug and PlayYes
Product colourBlack
Nominal attenuation0.5Mhz €“ 15Ghz 40db
Weight & dimensions
Cable length0.5 m
Cable diameter4.5 mm
Bend radius (min)4.5 cm
Connector 1 dimensions (WxDxH)15.5 x 35.1 x 7.8 mm
Connector 2 dimensions (WxDxH)11 x 25.5 x 7.3 mm
Packaging data
Package typePolybag
Packaging content
Quantity per pack1 pc(s)
Operational conditions
Operating temperature (T-T)-20 - 80 °C
Storage temperature (T-T)-25 - 85 °C
Certificates
CertificationRoHS, REACH, UL
Logistics data
Harmonized System (HS) code84733080
