Description

Lindy 15m USB 3.0 Active Extension, 15 m, USB A, USB A, USB 3.2 Gen 1 (3.1 Gen 1), 5 Gbit/s, Black

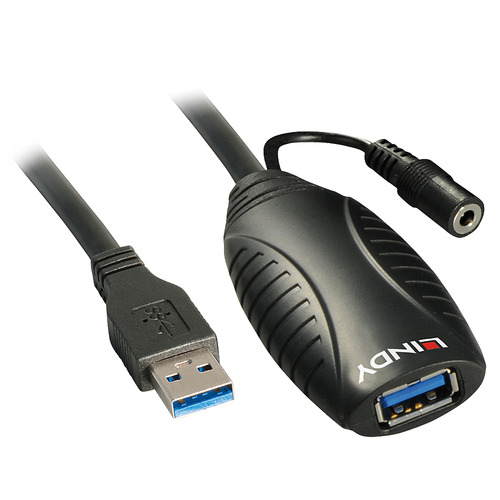

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 15m whilst continuing to support data transfer rates of up to 5Gbps.

With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 30m.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.

The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

BrandLINDY
Manufacturer part no.43099
Our part no.4R72801
EAN4002888430999
CategoryCables & Adapters › USB Cables & Adapters
Weight1 kg
Features
USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
Connector 1USB A
Connector 2USB A
Connector 1 genderMale
Connector 2 genderFemale
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size28/28/22
Connector materialNickel
Contact materialCopper
Connector contacts platingNickel
Cable jacket materialPolyvinyl chloride (PVC)
Conductor materialCopper
Connector shieldingYes
Connector shield materialAluminium
Connector housing materialPlastic
Maximum data transfer rate5000 Mbit/s
Maximum data transfer rate5 Gbit/s
Cable typeRound cable
Plug and PlayYes
Product colourBlack
Transmission mediumTwisted pair
Nominal attenuation100 MHz, -1.5 dB 1.25 GHz, -5.0 dB 2.5 GHz, -7.5 dB 7.5 GHz, -25 dB
Power
Power note3.5/1.35mm DC
Weight & dimensions
Cable length15 m
Cable diameter7 mm
Weight1.33 kg
Bend radius (min)6 cm
Connector 1 dimensions (WxDxH)16 x 49 x 9 mm
Connector 2 dimensions (WxDxH)35 x 85 x 15 mm
Connector 3 dimensions (WxDxH)35 x 100 x 15 mm
Packaging data
Package typePolybag
Package width300 mm
Package depth80 mm
Package height300 mm
Package weight1.39 kg
Packaging content
Quantity per pack1 pc(s)
ManualYes
Operational conditions
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-20 - 85 °C
Certificates
CertificationCE, UKCA, FCC, RoHS, REACH
Logistics data
Harmonized System (HS) code84733080
