Description

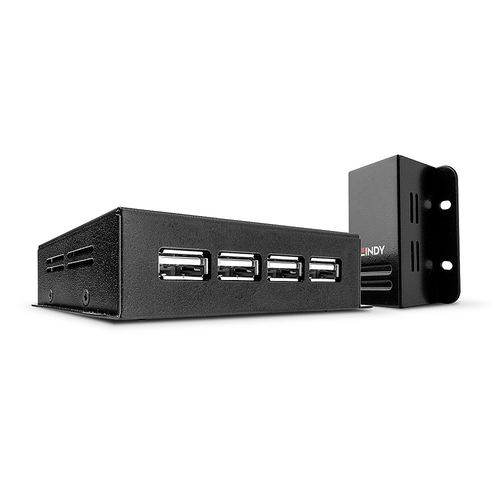

Lindy 50m 4 Port USB 2.0 Cat.6 Extender, Network transmitter & receiver, 50 m, 480 Mbit/s, Cat5, Cat5e, Cat6, NS1021, Phosphor bronze

This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between four USB peripheral devices and the host computer by up to 50m.

A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.

The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required. With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.

Specifications

BrandLINDY
Manufacturer part no.42681
Our part no.4R72806
EAN4002888426817
CategoryNetworking › USB Hubs & Adapters
Weight0.6 kg
Performance
TypeNetwork transmitter & receiver
Maximum transfer distance50 m
Data transfer rate480 Mbit/s
Cable types supportedCat5, Cat5e, Cat6
Chipset (transmitter)NS1021
Plug and PlayYes
Ports & interfaces
Ethernet LAN (RJ-45) ports2
RJ-45 ports quantity (transmitter)1
RJ-45 ports quantity (receiver)1
USB 2.0 ports quantity5
DC-in jackYes
Contact materialPhosphor bronze
Connector contacts platingGold
Connector materialGold
Design
Product colourBlack
Housing materialMetal
LED indicatorsYes
CertificationCE, UKCA, FCC, RoHS, REACH
Power
External power adapterYes
Output voltage24 V
Output current0.5 A
Power over Ethernet (PoE)Yes
Power note3.5/1.35mm DC
Included power plug typesAU, EU, UK, US
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-20 - 80 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%
Weight & dimensions
Weight415 g
Transmitter width6 cm
Transmitter depth6.7 cm
Transmitter height2.3 cm
Receiver width11 cm
Receiver depth6.4 cm
Receiver height2.3 cm
Packaging content
Cables includedUSB Type-A to USB Type-B
ManualYes
Packaging data
Package typeBox
Package width215 mm
Package depth155 mm
Package height50 mm
Package volume600 cm³
Logistics data
Harmonized System (HS) code85176990
