Description

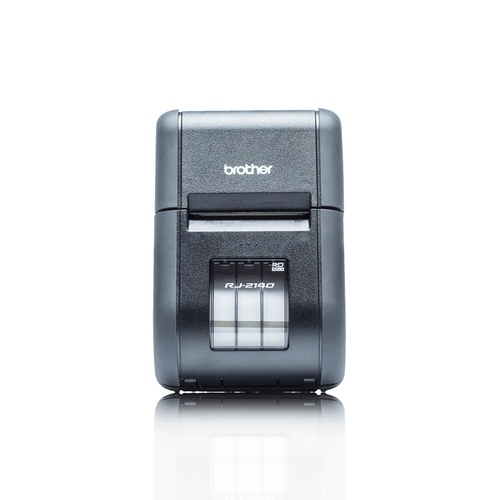

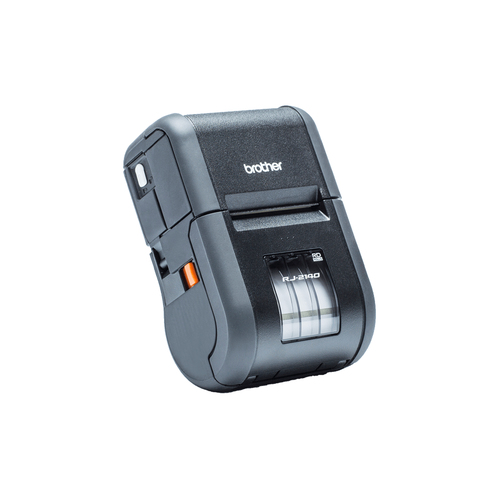

Brother RJ-2140, Direct thermal, Mobile printer, 203 x 203 DPI, 6 ips, 152 mm/sec, 6 cm
Print labels and receipts on-demand with the Wi-Fi enabled Brother RJ-2140 mobile printer. Integrate the printer into your existing system using SDK's for iOS, Android and Windows. Built-in support for ZPL II, CPCL and Brother ESC/P emulations offer further integration options.
Specifications
| Brand | BROTHER |
|---|---|
| Manufacturer part no. | RJ2140Z1 |
| Our part no. | 5837186 |
| EAN | 4977766768115 |
| Category | Label & Receipt Printers › Mobile Label Printers |
| Weight | 1.2 kg |
| Printing | |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 6 ips |
| Print speed | 152 mm/sec |
| Print technology | Direct thermal |
| Type | Mobile printer |
| Paper handling | |
| Maximum roll diameter | 6 cm |
| Maximum printing width | 5.4 cm |
| Maximum media length | 100 cm |
| Ports & interfaces | |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB connector | Mini-USB Type-B |
| Connectivity technology | Wired & Wireless |
| Bluetooth profiles | BIP, HCRP, OPP, SPP |
| Network | |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Features | |
| Built-in barcodes | AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1-128, ITF, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Page description languages | CPCL-native, ESC P, ZPL II |
| Internal memory | 32 MB |
| RAM capacity | 0.032 GB |
| Country of origin | China |
| Design | |
| Product colour | Black, Grey |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 6.1 cm (2.4") |
| Power | |
| Power source type | Battery |
| Battery voltage | 7.2 V |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64 |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 185 mm |
| Height | 230 mm |
| Weight | 957 g |
| Packaging data | |
| Package weight | 1.46 kg |
| Packaging content | |
| Drivers included | Yes |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Batteries included | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Products per pallet | 150 pc(s) |
| Pallet gross height | 14 cm |
| Pallet gross weight | 225 kg |
| Master (outer) cases per pallet | 50 pc(s) |
| Layers per pallet | 5 pc(s) |
| Technical details | |
| Master (outer) cases per pallet layer | 10 pc(s) |
| Pallet type | 800 x 1200 mm |
| Other features | |
| International Protection (IP) code | IP54 |
| Battery type | PA-BT-003 |
| Rechargeable | Yes |
| Wi-Fi Direct | Yes |
| Mobile printing technologies | Apple AirPrint, Google Cloud Print |
