Description

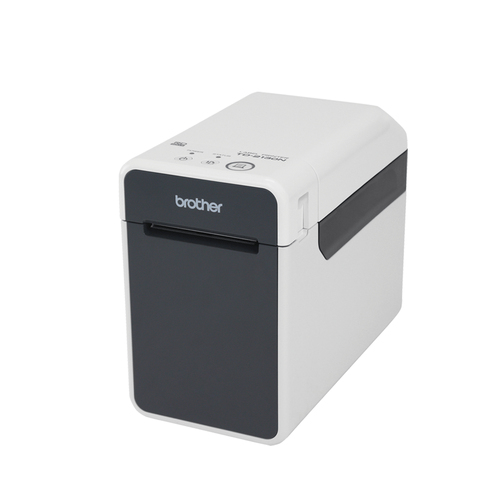

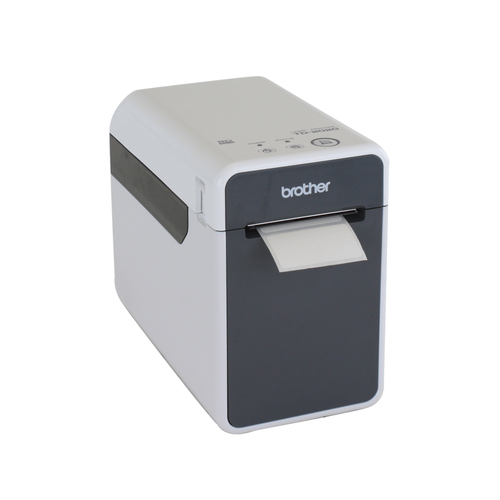

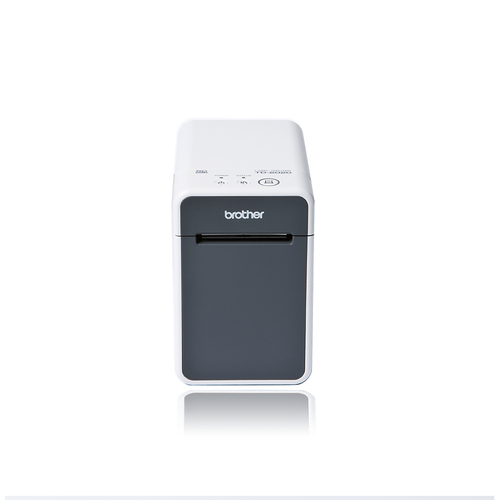

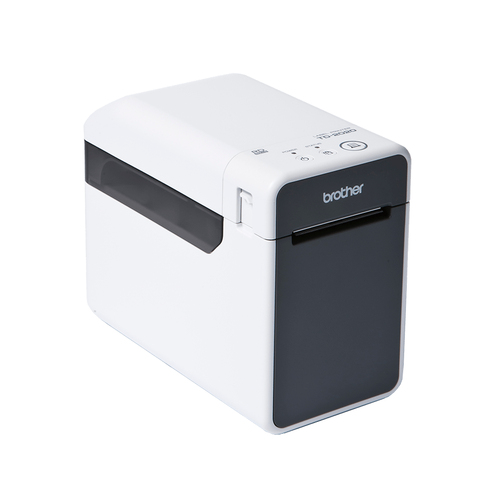

Brother TD-2020, Direct thermal, 203 x 203 DPI, 152.4 mm/sec, Wired, White
Increasing productivity and reducing costs are priorities in any workplace. And when it comes to label printing, the TD-2020 combines proven desktop printer performance with new levels of efficiency to help you do more for less.
Specifications
| Brand | BROTHER |
|---|---|
| Manufacturer part no. | TD2020ZU1 |
| Our part no. | 5837651 |
| EAN | 4977766720489 |
| Category | Label & Receipt Printers › Mobile Label Printers |
| Weight | 2.7 kg |
| Printing | |
| Print technology | Direct thermal |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 152.4 mm/sec |
| Maximum printing width | 5.6 cm |
| Maximum print height | 9.86 cm |
| Paper handling | |
| Autocutter | Yes |
| Ribbon length | 1 m |
| Maximum label length | 1 m |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | No |
| Wi-Fi | No |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Optional connectivity | Serial (RS-232), USB 2.0 |
| Performance | |
| Page description languages | ESC P |
| Internal memory | 6 MB |
| Flash memory | 8 MB |
| Built-in barcodes | QR Code |
| Number of fonts | 7 |
| Tape cutting | Automatic |
| Underline | Yes |
| Design | |
| Product colour | White |
| Built-in display | No |
| Power | |
| AC adapter output voltage | 25 V |
| AC adapter output current | 6 A |
| System requirements | |
| Minimum storage drive space | 70 MB |
| Minimum RAM | 128 MB |
| Windows operating systems supported | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width | 285 mm |
| Depth | 181 mm |
| Height | 266 mm |
| Weight | 2.12 kg |
| Packaging data | |
| Package weight | 2.83 kg |
| Packaging content | |
| Cables included | USB |
| Bundled software | Thermal Printer PLUS Brother Label Design/Print |
| Drivers included | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Pallet gross height | 15.5 cm |
| Pallet gross weight | 186 kg |
| Master (outer) cases per pallet | 20 pc(s) |
| Master (outer) cases per pallet layer | 4 pc(s) |
| Layers per pallet | 5 pc(s) |
| Products per pallet | 60 pc(s) |
| Technical details | |
| Pallet type | 800 x 1200 mm |
| Other features | |
| Maximum resolution | 203 x 203 pixels |
| Media types supported | 0.75 - 2.48" (19 - 63mm) Wide, 2.3 - 11mil (0.058 - 0.279mm) Thick, 5" (127mm) OD |
| Character sets | Abicomp, ASCII, BRASCII, ISO 8859-15, ISO Latin 1, Italic, PC437, PC850, PC858, PC860, PC861, PC863, PC865, Roman 8 |
| LED indicators | Yes |
| Country of origin | China |
| Spare part retention | 5 year(s) |
