Description

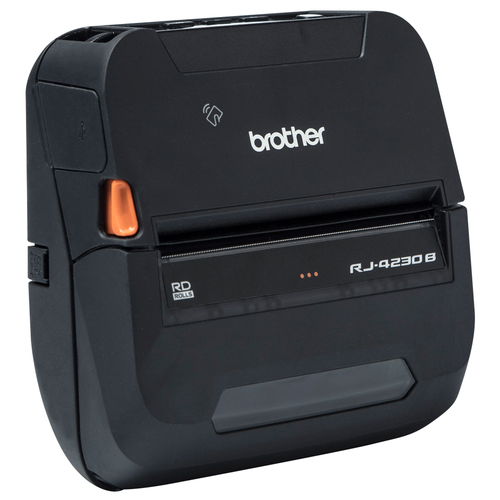

Brother RJ-4230B, Direct thermal, Mobile printer, 203 x 203 DPI, 5 ips, 127 mm/sec, 5.8 cm

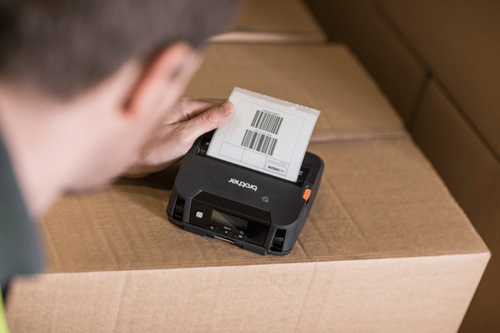

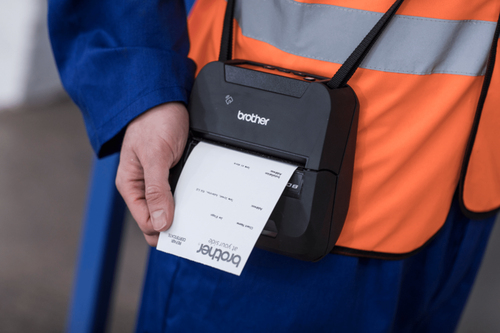

Rugged mobile printing – whatever the conditions The RJ-4230B mobile printer is fast, compact and extremely rugged. It empowers workers to operate in any environment with speed, accuracy and efficiency. This mobile label and receipt printer raises the industry standard with a smart new way to manage and deploy printers, housing design and market leading technology, performance, ruggedness and connectivity. This fast mobile printing solution is designed to meet the needs of the busy workforce. Print labels, tags, invoices, quotes, receipts, and more on the spot, with convenient Bluetooth connectivity that saves valuable time.
Specifications
| Brand | BROTHER |
|---|---|
| Manufacturer part no. | RJ4230BZ1 |
| Our part no. | 5838027 |
| EAN | 4977766788717 |
| Category | Label & Receipt Printers › Mobile Label Printers |
| Weight | 1.2 kg |
| Printing | |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 5 ips |
| Print speed | 127 mm/sec |
| Print technology | Direct thermal |
| Type | Mobile printer |
| Paper handling | |
| Maximum roll diameter | 5.8 cm |
| Supported paper width | 45 - 113 mm |
| Maximum printing width | 10.4 cm |
| Maximum media length | 3 m |
| Ports & interfaces | |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB connector | Mini-USB Type-B |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Connectivity technology | Wired & Wireless |
| Bluetooth profiles | GATT, HCRP, OPP, SPP |
| Near Field Communication (NFC) | Yes |
| Standard interfaces | Bluetooth, NFC, USB 2.0 |
| Network | |
| Ethernet LAN | No |
| Wi-Fi | No |
| Features | |
| Flash memory | 64 MB |
| RAM capacity | 0.256 GB |
| Country of origin | China |
| Design | |
| Product colour | Black |
| Built-in display | Yes |
| Display | LCD |
| Power | |
| Power source type | Battery, DC |
| AC input voltage | 110/220 V |
| AC input frequency | 50 - 60 Hz |
| Battery recharge time | 4 h |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 55 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Weight & dimensions | |
| Width | 121 mm |
| Depth | 247 mm |
| Height | 187 mm |
| Weight | 700 g |
| Packaging data | |
| Package weight | 1.28 kg |
| Packaging content | |
| Batteries included | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Products per pallet | 168 pc(s) |
| Pallet gross height | 16.6 cm |
| Pallet gross weight | 244.2 kg |
| Master (outer) cases per pallet | 56 pc(s) |
| Layers per pallet | 7 pc(s) |
| Technical details | |
| Master (outer) cases per pallet layer | 8 pc(s) |
| Pallet type | 800 x 1200 mm |
| Other features | |
| International Protection (IP) code | IP54 |
| Rechargeable | Yes |
