Description

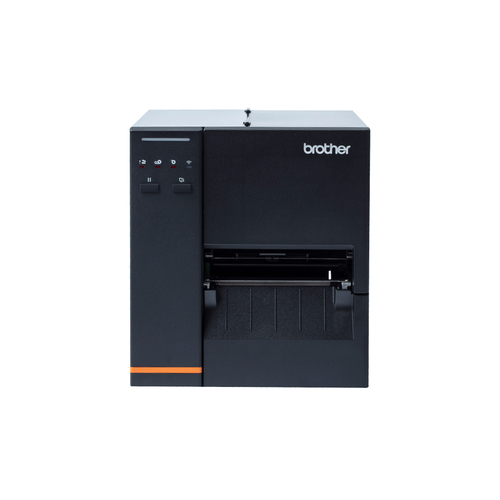

Brother TJ-4020TN, Direct thermal / Thermal transfer, 203 x 203 DPI, 254 mm/sec, Wired, Black
The Brother TJ-4020TN industrial label printer offers performance you can rely on when keeping up with increasing demand.The high-volume thermal label printer has been designed to ensure minimal downtime and maximum productivity through fast print speeds, large ribbon capacity and in-built durability.With ZPL2 emulation compatibility and multiple connectivity options, the TJ-4020TN has been built with you in mind. Brother's 5-year return-to-base warranty and optional service packs for this product can help protect your business from costly downtime, disruptions, and inconveniences.
Specifications
| Brand | BROTHER |
|---|---|
| Manufacturer part no. | TJ4020TNZU1 |
| Our part no. | 5838619 |
| EAN | 5023821214215 |
| Category | Label & Receipt Printers › Desktop Label Printers |
| Weight | 11.1 kg |
| Printing | |
| Print technology | Direct thermal / Thermal transfer |
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 254 mm/sec |
| Maximum printing width | 10.7 cm |
| Minimum print length | 5 mm |
| Maximum print length | 25.4 m |
| Paper handling | |
| Ribbon width | 4 cm |
| Ribbon length | 450 m |
| Maximum label width | 12 cm |
| Maximum roll diameter | 20.3 cm |
| Core diameter | 7.62 cm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| USB port | Yes |
| RS-232 ports | 1 |
| Performance | |
| Page description languages | DPL, EPL2, ZPL II |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Built-in barcodes | AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39, UPC-E |
| Number of fonts | 8 |
| Design | |
| Product colour | Black |
| Built-in display | No |
| Display | No |
| Control type | Buttons |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Mobile operating systems supported | Android, iOS |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 25 - 85% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Weight & dimensions | |
| Width | 350 mm |
| Depth | 530 mm |
| Height | 370 mm |
| Weight | 9.42 kg |
| Packaging data | |
| Package weight | 11 kg |
| Packaging content | |
| Cables included | AC, USB |
| Software development kit (SDK) | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Pallet gross height | 16.3 cm |
| Pallet gross weight | 238.4 kg |
| Master (outer) cases per pallet | 20 pc(s) |
| Master (outer) cases per pallet layer | 5 pc(s) |
| Layers per pallet | 4 pc(s) |
| Products per pallet | 20 pc(s) |
| Technical details | |
| Pallet type | 1200 x 1000 mm |
| Other features | |
| LED indicators | Error, Power, Status |
| Country of origin | Taiwan |
| Languages support | Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish |
