Description

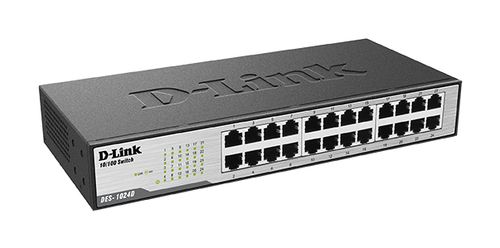

D-Link 24-Port Fast Ethernet Unmanaged Desktop Switch, Unmanaged, Fast Ethernet (10/100), Full duplex
The DES-1024D 24-Port Fast Ethernet Unmanaged Desktop Switch is designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.
With the D-Link 24-Port Fast Ethernet Unmanaged Switches, you can easily expand your business or home network by adding more computers and devices, each achieving speeds up to 200 Mbps per port in full-duplex mode. Quickly and securely connect employees working in small offices with one another and with all of the servers, printers, and other devices they use. High performance and reliable connectivity help speed file transfers and data processing, improve network uptime, and keep your employees connected and productive.
Expand and Upgrade Your Network
The DES-1024D switch offers an economical way for SOHO and small to medium businesses (SMB) to benefit from high-speed networking. It provides twenty-four ports for easy expansion of your network and a quick way to upgrade your network to Fast Ethernet connectivity. The switches speed file transfer times, improve slow and sluggish networks, keep your vital business applications available, and help your employees respond more quickly to customers and each other.
Conserve Energy
The DES-1024D switch helps you conserve energy through IEEE802.3az EEE, which works when both the switch and its link partner are EEE-compliant devices. This power-saving feature automatically puts the switch into a low-power idle state when the switch utilization is zero, allowing you to lower your energy usage and save on your energy costs.
Designed with the Environment in Mind
The DES-1024D switch uses recyclable packaging that helps reduce waste, complying with the WEEE directive. It’s innovatively designed to run cool and quiet without sacrificing performance.
Specifications
| Brand | D-LINK |
|---|---|
| Manufacturer part no. | DES-1024D/B |
| Our part no. | 5841506 |
| EAN | 0790069246104 |
| Category | Networking › Switches |
| Weight | 1.9 kg |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.3, IEEE 802.3U, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| Data transmission | |
| Supported data transfer rates | 100 Mbps |
| Switching capacity | 4.8 Gbit/s |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Packet forwarding rate (100 Mbps) | 148.8 pps |
| Packet forwarding rate (10 Mbps) | 14.88 pps |
| Protocols | |
| Switching protocols | Ethernet |
| Data link protocols | Ethernet, Fast Ethernet |
| Supported network protocols | CSMA/CD |
| Design | |
| Stackable | No |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Performance | |
| Internal memory | 2 MB |
| Mean time between failures (MTBF) | 810.88 h |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 2.8 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Dimensions (WxDxH) | 280 x 180 x 44 mm |
| Connectivity technology | Wired |
| I/O ports | 24-10/100Mbps RJ-45 Auto-sensing ports |
| Networking features | 10/100Base – EIA/TIA Categories 3 or 5 cable |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 9.5536 BTU/h |
| Weight & dimensions | |
| Width | 280 mm |
| Depth | 150 mm |
| Height | 44 mm |
| Weight | 1.14 kg |
| Packaging data | |
| Package width | 282 mm |
| Package depth | 376 mm |
| Package height | 78 mm |
| Package weight | 1.9 kg |
| Technical details | |
| Shipping (inner) case height | 31.1 cm |
| Shipping (inner) case width | 39.2 cm |
| Shipping (inner) case length | 42 cm |
| Shipping (inner) case net weight | 9.5 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Pallet gross weight (air) | 265.9 kg |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Products per pallet (air) | 120 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 137.9 cm |
| Pallet gross weight (sea) | 390.3 kg |
| Master (outer) cases per pallet (sea) | 36 pc(s) |
| Products per pallet (sea) | 180 pc(s) |
| Pallet height (sea) | 2 m |
| Shipping (inner) case gross weight | 10.4 kg |
| Certificates | |
| Compliance certificates | BSMI, CB, CCC, CE, Federal Communications Commission (FCC), ICES, Low Voltage Directive (LVD), RCM, VCCI, cUL |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
