Description

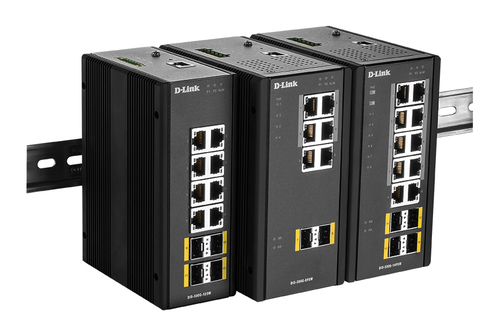

D-Link 12-Port L2 Managed Switch Switch with 8 x 10/100/1000BaseT(X) & 4 x 100/1000BaseSFP, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable

Managed Customization Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-12SW is easy to manage and provides the security and controls to guard and shape your network needs.

Gigabit Connectivity with SFP slots Designed with 8 x 100/1000BaseT ports and 4 x 100/1000Base SFP to suit a range of devices and network layouts.

Officially Certified Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

Strong Build The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

High Availability Rapid ring failover recovery time of Fast Deployment For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Discrete Size Small but mighty. To make the most of cabinet space, it measures: 61 x 154 x 109 mm.

Specifications

BrandD-LINK
Manufacturer part no.DIS-300G-12SW
Our part no.5845409
EAN0790069437915
CategoryNetworking › Switches
Weight1.5 kg
Management features
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
Traffic shapingYes
System event logYes
MIB supportRFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity4
Fiber optic connectorLC
Network
Networking standardsIEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
10G supportNo
Full duplexYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
Auto-negotiationYes
VLAN supportYes
Virtual LAN featuresTagged VLAN, Protocol-based VLAN, Port-based VLAN
Number of VLANs1024
Data transmission
MAC address table8000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames9000
Security
DHCP featuresDHCP server, DHCP snooping, DHCP relay, DHCP client
Security algorithmsHTTPS, SNMP, SNMPv3, SSH
Authentication typeIEEE 802.1x, RADIUS
Queue scheduling algorithmsWeighted Round Robin (WRR)
Multicast features
Multicast supportYes
Design
Rack mountingNo
Product colourBlack
LED indicatorsLAN, Status
International Protection (IP) codeIP30
Wall mountableYes
DIN rail mountingYes
Electromagnetic compatibilityFCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6
Performance
Firmware upgradeableYes
Power
DC input voltage12 - 58 V
Power consumption (max)17 W
Power protection featuresOver current, Reverse polarity
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Width61 mm
Depth154 mm
Height109 mm
Weight1.09 kg
Packaging data
Package width195 mm
Package depth242 mm
Package height118 mm
Package weight1.53 kg
Technical details
Shipping (inner) case height27 cm
Shipping (inner) case width41 cm
Shipping (inner) case length60 cm
Shipping (inner) case net weight15.3 kg
Products per shipping (inner) case10 pc(s)
Pallet gross weight (air)346.7 kg
Master (outer) cases per pallet (air)20 pc(s)
Products per pallet (air)200 pc(s)
Pallet gross length120 cm
Pallet gross width110 cm
Pallet height (air)148.5 cm
Pallet gross weight (sea)478.6 kg
Master (outer) cases per pallet (sea)28 pc(s)
Products per pallet (sea)280 pc(s)
Pallet height (sea)2.02 m
Shipping (inner) case gross weight16.5 kg
Certificates
CertificationIEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE
Logistics data
Harmonized System (HS) code85176990
