Description

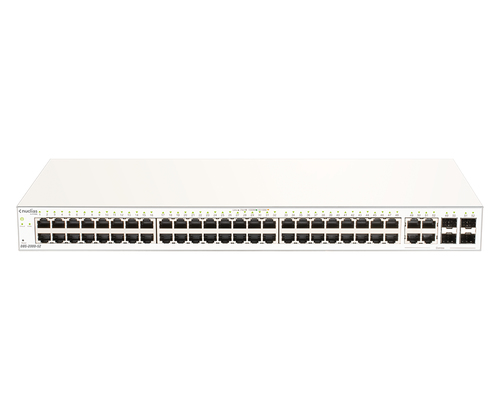

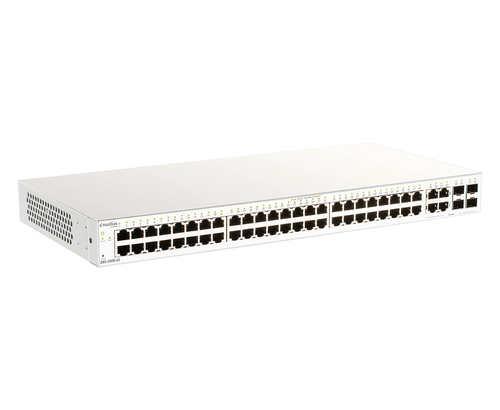

D-Link 52-Port Gigabit Nuclias Smart Managed Switch including 4x 1G Combo Ports, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting

Cloud Networking, Refreshed The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.

Management Over the Cloud DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.

Easy Troubleshooting The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.

Advanced Security Features The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.

Specifications

BrandD-LINK
Manufacturer part no.DBS-2000-52
Our part no.5845583
EAN0790069442971
CategoryNetworking › Switches
Weight4.7 kg
Management features
Switch typeManaged
Switch layerL2
Web-based managementYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity4

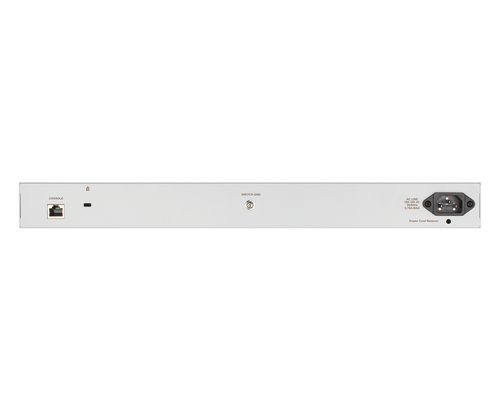

Console portRJ-45
Network
Networking standardsIEEE 802.3ad
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Link aggregationYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
Data transmission
Switching capacity104 Gbit/s
Forwarding rate77.4 Mpps
Packet buffer memory12 MB
Security
IGMP snoopingYes
Security algorithmsWPA, WPA2
Design
Rack mountingYes
Product colourGrey
LED indicatorsYes
Number of fans0 fan(s)
Performance
Built-in processorYes
Processor frequency700 MHz
Memory typeDDR3-SDRAM
Internal memory256 MB
Flash memory32 MB
Mean time between failures (MTBF)400667 h
Power
AC input voltage100 - 240 V
Power consumption (max)34.85 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Heat dissipation118.92 BTU/h
Weight & dimensions
Width440 mm
Depth210 mm
Height44.5 mm
Weight3.46 kg
Packaging data
Package width354 mm
Package depth552 mm
Package height98 mm
Package weight4.6 kg
Technical details
Shipping (inner) case height38.3 cm
Shipping (inner) case width31.4 cm
Shipping (inner) case length56.2 cm
Shipping (inner) case net weight13.8 kg
Products per shipping (inner) case3 pc(s)
Pallet gross weight (air)284.8 kg
Master (outer) cases per pallet (air)18 pc(s)
Products per pallet (air)54 pc(s)
Pallet gross length110 cm
Pallet gross width120 cm
Pallet height (air)128.4 cm
Pallet gross weight (sea)462.2 kg
Master (outer) cases per pallet (sea)30 pc(s)
Products per pallet (sea)90 pc(s)
Pallet height (sea)2.05 m
Shipping (inner) case gross weight14.7 kg
Logistics data
Harmonized System (HS) code85176990
