Description
D-Link Wireless AC1200 Wave2 Dual Band Outdoor PoE Access Point, 2.4 GHz, 5 GHz, 1200 Mbit/s, 64-bit WEP, SSID, 128-bit WEP, 10,100,1000 Mbit/s

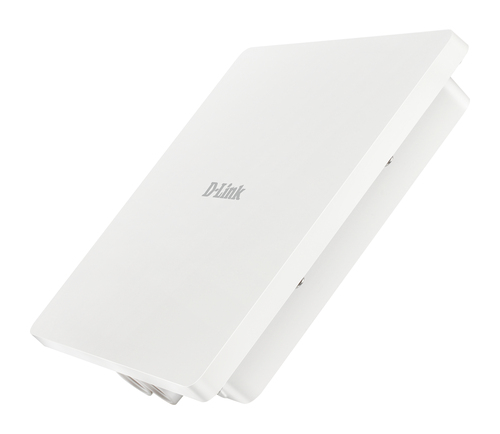

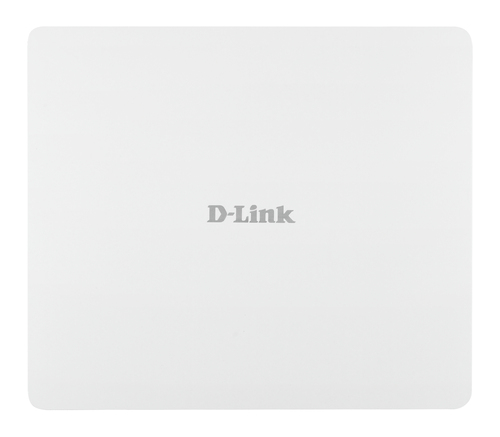

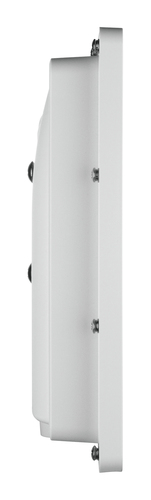

The WiFi4EU ready DAP-3666 Wireless AC1200 Wave 2 Dual-Band Outdoor PoE Access Point is a versatile, high power outdoor access point designed with harsh weather resistant features making it an ideal solution for creating outdoor wireless hotspot networks. Utilising the cutting-edge speed of 802.11ac Wave 2, it delivers maximum combined wireless signal rates of up to 1200Mbps and supports MU-MIMO technology that allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. It is Passpoint® certified by Wi-Fi Alliance and complies with Hotspot 2.0, making the process of devices finding and getting access to the known network seamless. For centralised network management, administrators can use D-Link’s free Nuclias Connect software or Nuclias Connect Hub (DNH-100) to configure and manage multiple access points. In addition to streamlining the management process, Nuclias Connect provides network administrators with the means to verify and conduct regular maintenance checks remotely, eliminating the need to send personnel out to physically verify proper operation.
Specifications
| Brand | D-LINK |
|---|---|
| Manufacturer part no. | DAP-3666 |
| Our part no. | 5845587 |
| EAN | 0790069443367 |
| Category | Networking › Wireless Access Points |
| Weight | 1 kg |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4, 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| Transmitting power | 26 dBmW |
| Mean time between failures (MTBF) | 30000 h |
| Security | |
| Security algorithms | 64-bit WEP, SSID, 128-bit WEP |
| Number of SSID supported | 16 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 48 V |
| Power consumption (max) | 10.5 W |
| Design | |
| Placement | Pole |
| Product colour | White |
| Cable lock slot | Yes |
| LED indicators | Power |
| Antenna | |
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 6 dBi |
| Certificates | |
| Certification | FCC, IC, CE, UL, Wi-Fi Certified, Wi-Fi Certified Passpoint |
| Weight & dimensions | |
| Width | 277 mm |
| Depth | 50 mm |
| Height | 240 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
