Description

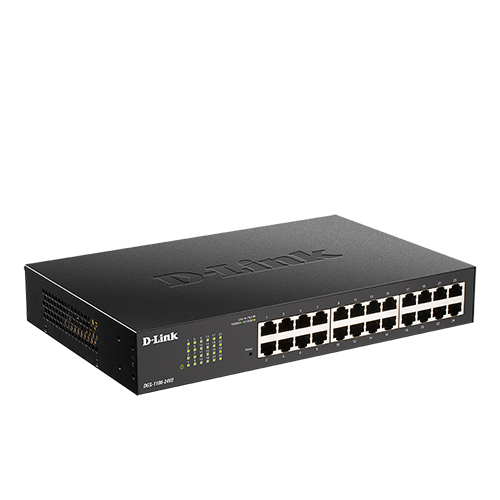

D-Link 24-Port Gigabit Smart Managed Switch, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting, 1U

Powerful Switching for your Business The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Easy to Use & Easy to Install D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

For Voice If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.

For Surveillance If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

Green Technology D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

Specifications

BrandD-LINK
Manufacturer part no.DGS-1100-24V2
Our part no.5845629
EAN0790069451775
CategoryNetworking › Switches
Weight2.3 kg
Management features
Switch typeManaged
Switch layerL2
Web-based managementYes
System event logYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Network
Networking standardsIEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
VLAN supportYes
Virtual LAN featuresPort-based VLAN, Voice VLAN
Number of VLANs4094
Data transmission
Switching capacity48 Gbit/s
Forwarding rate35.71 Mpps
MAC address table8000 entries
Store-and-forwardYes
Number of queues4
Jumbo frames supportYes
Jumbo frames9216
Packet buffer memory4.1 MB
Security
DHCP featuresDHCP client
IGMP snoopingYes
IGMP entries64
Security algorithmsSNMP, SSL/TLS
Queue scheduling algorithmsSPQ, Weighted Round Robin (WRR)
Multicast features
Multicast supportYes
Design
Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes
Electromagnetic compatibilityFCC A, CE A, VCCI A, C-Tick, BSMI, CCC
Performance
Built-in processorYes
Processor frequency125 MHz
Flash memory16 MB
Noise level0 dB
Mean time between failures (MTBF)424762 h
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)4.5 W
Power consumption (max)15.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 2000 m
Heat dissipation54.3 BTU/h
Weight & dimensions
Width280 mm
Depth180 mm
Height44 mm
Weight1.47 kg
Packaging content
Rack mount kitYes
Certificates
CertificationRoHS 6 cUL, CE LVD, CB, BSMI, CCC
Logistics data
Harmonized System (HS) code85176990
