Description

Canon VB-S910F, IP security camera, Wired, Aperture priority AE, Auto, Manual, Shutter priority AE, EN55032 Class B, FCC 15 B B, ICES-003 B, VCCI B, C-tick AS/NZS EN55032 Class B, CNS13438 B, KN32..., Ceiling/wall, White

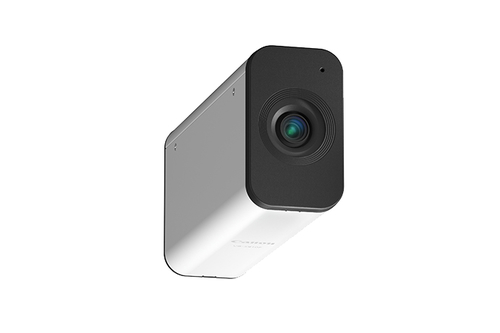

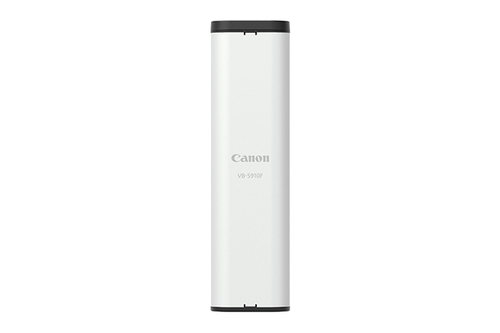

Weighing under a half-pound, Canon's compact VB-S910F Fixed Micro Box Network Camera allows for discreet video surveillance in an esthetically pleasing form factor. The VB-S910F is equipped with a Genuine Canon 3.5x Optical Zoom Lens, 2.1 Megapixel resolution CMOS Sensor and DIGIC DV III Image Processor, all of which work together to deliver images with remarkable clarity and color accuracy. A built-in microphone allows audio recording at the camera's installation site. Users will appreciate the reduced bandwidth and storage space consumption possible with the Area-Specific Data Size Reduction and Motion Adaptive Noise Reduction features, as well as the low power consumption (4.8W maximum over PoE) offered by the VB-S910F.

Features

- Genuine Canon Lens with 3.5x Optical Zoom helps provide Outstanding Image Clarity and Flexibility - 2.1 Megapixel Resolution High-Sensitivity CMOS Sensor helps deliver video with Outstanding Detail - Advanced DIGIC DV III Image Processor to help Maximize Image Quality and Color Accuracy - Lightweight and Compact Form Factor (0.4 oz.) allows Camera to be Discreet and Aesthetically Pleasing - Built-in Microphone for Audio Recording at Installation Site* - Motion Adaptive Noise Reduction to Increase Video Clarity in Low-Light Conditions and Reduce Bandwidth Consumption - Area-Specific Data Size Reduction (ADSR) to Maintain Video Quality in Important Areas while Reducing Bandwidth Usage - Privacy Mask for Placing a Digital Mask over Restricted Areas - ONVIF Profile S Conformant for VMS Connectivity - Web-Based Camera Viewer with Mobile Device Support - Low Power Consumption (Maximum 4.8W) - PoE Power Source Compatible

Specifications

BrandAXIS
Manufacturer part no.1389C001
Our part no.B092933
EAN4549292078381
CategorySecurity & Surveillance › IP Cameras
Weight0.4 kg
Performance
TypeIP security camera
Connectivity technologyWired
PTZ controlYes
Preset pointsYes
Day/night modeYes
Infrared (IR) cut-off filterYes
Light exposure modesAperture priority AE, Auto, Manual, Shutter priority AE
CertificationEN55032 Class B, FCC 15 B B, ICES-003 B, VCCI B, C-tick AS/NZS EN55032 Class B, CNS13438 B, KN32 B, EN55024, KN35, EN50581, IEC/UL/EN60950-1
Design
Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Camera
Minimum illumination0.5 lx
Lens viewing angle, horizontal78.6°
Lens viewing angle, vertical40.9°
White balanceAuto, Fluorescent, Halogen, Manual, Mercury lamp, Sodium lamp
Camera shutter speed1 - 1/16000 s
Image sensor
Optical sensor size25.4 / 4.85 mm (1 / 4.85")
Progressive scanYes
Sensor typeCMOS
Lens system
Zoom capabilityYes
Optical zoom3.5x
Digital zoom4x
Focal length range2.25 - 7.88 mm
Auto focusYes
Maximum aperture number2.6
Night vision
Night visionYes
Video
Maximum resolution1920 x 1080 pixels
Total megapixels2.1 MP
Video compression formatsH.264
Supported graphics resolutions320 x 180, 320 x 240, 480 x 270, 640 x 360, 640 x 480 (VGA), 960 x 540, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate30 fps
Automatic gain controlYes
Full HDYes
Privacy maskingYes
Audio
Audio system full duplexYes
Frequency range50 - 16000 Hz
Signal-to-Noise Ratio (SNR)62 dB
Built-in microphoneYes
Voice codecsG.711Mu
Network
Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4, IPv6, TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP
Wi-FiNo
Cabling technology10/100Base-T(X)
Number of users31 user(s)
Storage
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Ports & interfaces
Headphone outputs1
InterfaceRJ-45
Security
Password protection typeSupervisor, User
Video motion detectionYes
Security algorithmsEAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS, IPSEC, SSL/TLS
Alert notification typeE-mail
Management features
Web-based managementYes
Power
Power source typePoE
Power consumption (Power over Ethernet (PoE))4.8 W
Power over Ethernet (PoE)Yes
Operational conditions
Operating temperature (T-T)-10 - 50 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)5 - 85%
Storage relative humidity (H-H)5 - 90%
Weight & dimensions
Width32 mm
Depth117 mm
Height54 mm
Weight180 g
Packaging content
Number of cameras1
User guideYes
Resource CDYes
