Description

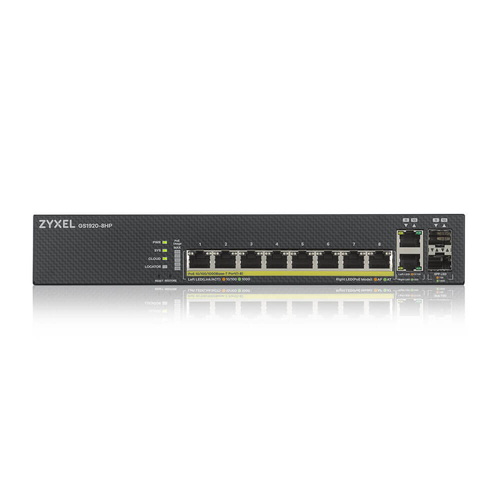

Zyxel GS1920-8HPv2, Managed, L2/L3/L4, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
A new-look smart managed switch with a refreshed design inside and out! The GS1920v2 series extends the success of the best-selling GS1920 series with a stylish new look and enables cloud manageability with Zyxel NebulaFlexTM technology.
What’s new? The GS1920v2 series comes with a fresh, modern look, a more intuitive user experience, and a new member—the 8HP model.
Manage it your way! The GS1920v2 series introduces Zyxel NebulaFlexTM, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks.
Anytime, Anywhere with Nebula Mobile App Easy device onboarding: QR code scan At a glance of network status Remote control your network Reboot AP, Camera by PoE power cycle Block clients with unusual traffic
Maximum flexibility for your Gig The GS1920v2 series is ideal for SMB deployment in multiple scenarios, with its unique port combinations futureproofing your network to ensure easy growth down the road.
Whisper-quiet operation Smart fan and fanless designs for silent operation in your workplace.
User-friendly LED indicators View real-time status instantly with cloud and PoE power-usage LED indicators.
Power more devices more easily Provides 30W per port and a wide range of power budget options from 130W to 375W—ideal for denser PoE deployments. Default consumption mode boosts efficiency by delivering the actual power required.
Zyxel ONE Network Use the complimentary ZON Utility to configure and discover switches, WLANs, and gateways in your network with one click.
Designed for the long haul A web smart managed switch with an enterprise-grade hardware design. Built-in state-of-the-art hardware technology brings high quality and robustness to SMB networks.
Specifications
| Brand | ZYXEL |
|---|---|
| Manufacturer part no. | GS1920-8HPV2-GB0101F |
| Our part no. | B776169 |
| EAN | 4718937602247 |
| Category | Networking › Unmanaged Switches |
| Weight | 2.6 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| MIB support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Policy-based routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 15 Mpps |
| MAC address table | 16000 entries |
| Packet buffer memory | 1.5 MB |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Security algorithms | 802.1x RADIUS, SSL/TLS |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| Password protection | Yes |
| Authentication type | RADIUS, TACACS+ |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), WFQ, Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1, v2c, v3 |
| Design | |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Wall mountable | Yes |
| Number of fans | 0 fan(s) |
| Electromagnetic compatibility | FCC Part 15 (Class A), CE EMC (Class A), BSMI ENC |
| Performance | |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 513985 h |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 161.8 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 130 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 551.74 BTU/h |
| Weight & dimensions | |
| Width | 267 mm |
| Depth | 162 mm |
| Height | 44 mm |
| Weight | 1.9 kg |
| Packaging content | |
| Cables included | AC |
| Certificates | |
| Certification | RoHS |
