Description

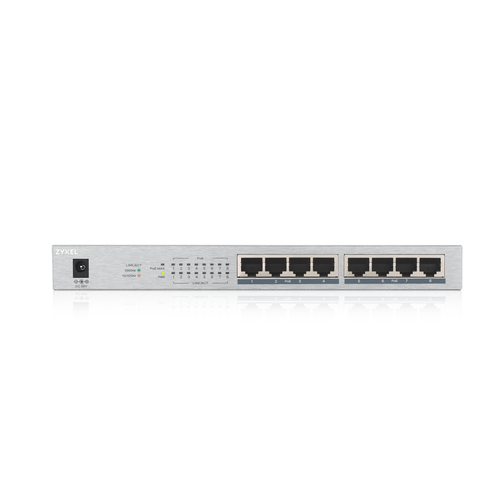

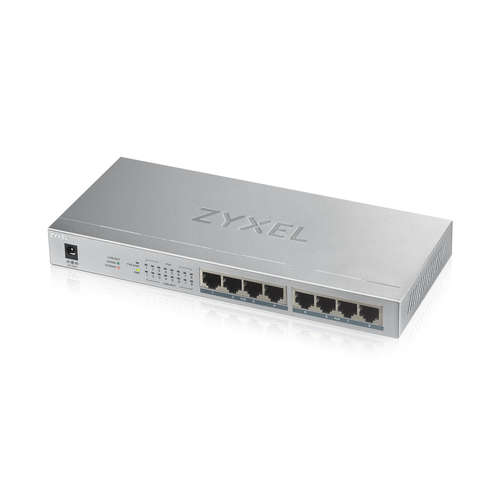

Zyxel GS1008HP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)

Meeting the price and power demands of small businesses The Zyxel GS1008HP is equipped with 8 gigabit Ethernet ports, all of which are PoE ports that can deliver up to 60W of total PoE budget. The GS1008HP can easily connect with PoE ready devices to your network with plug-and-play design while providing power-saving benefits without compromising performance. The GS1008HP fills a long-standing hole in the market for unmanaged PoE switches that feature the 802.3at standard, has a high power budget and are affordable for SOHOs and small businesses.

Smart PoE+ 802.3af/802.3at Support The GS1008HP supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices such as wireless APs, IP cameras, and VoIP phones.

Easy PoE Budget Management The GS1008HP boasts a total power budget of 60W and features a handy LED indicator that shows orange when the 50W threshold is reached. If power usage exceeds the budget, the last device will automatically be dropped with no impact on the other devices that are powered through the switch.

Gigabit data transmission and smart features Featuring Gigabit performance, it provides 10 times faster than Fast Ethernet. Delivers up to 2,000 Mbps of dedicated bandwidth per port. Get more advanced features like Jumbo Frame, flow control, and auto-negotiation. It’s a great choice for SMBs who want to enjoy high-speed business network applications!

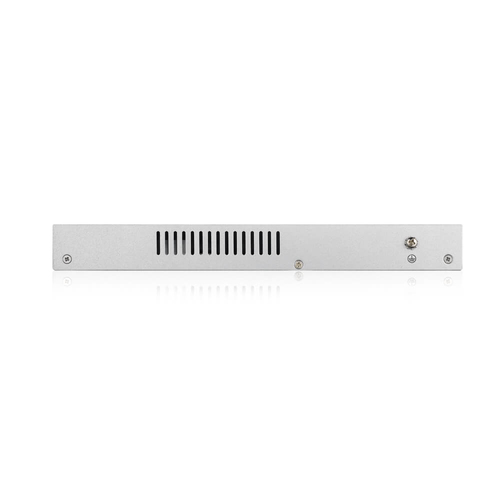

Fanless design Extend your network without disrupting your quiet business environment. This switch features a fanless design that ensures noiseless operation and greater reliability over time with no moving parts that may fail.

Advanced Energy-Savings at Work The GS1008HP's built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during low link utilization periods.

Specifications

BrandZYXEL
Manufacturer part no.GS1008HP-GB0101F
Our part no.B776264
EAN4718937604142
CategoryNetworking › Switches
Weight1.2 kg
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity8
Network
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportNo
Full duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Data transmission
Switching capacity16 Gbit/s
MAC address table4096 entries
Jumbo frames supportYes
Jumbo frames9216
Design
Rack mountingNo
Product colourSilver
LED indicatorsActivity, Link, PoE, Power
Power
AC input voltage100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget60 W
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Weight & dimensions
Width240 mm
Depth105 mm
Height26 mm
Weight610 g
Packaging content
Quick start guideYes
Packaging data
Package typeBox
Package width256 mm
Package depth132 mm
Package height78 mm
Package weight1.26 kg
Certificates
CertificationCE, FCC, BSMI, EAC
Logistics data
Harmonized System (HS) code85176990
