Description

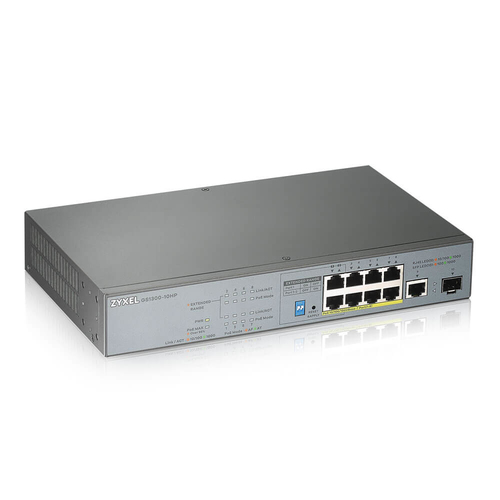

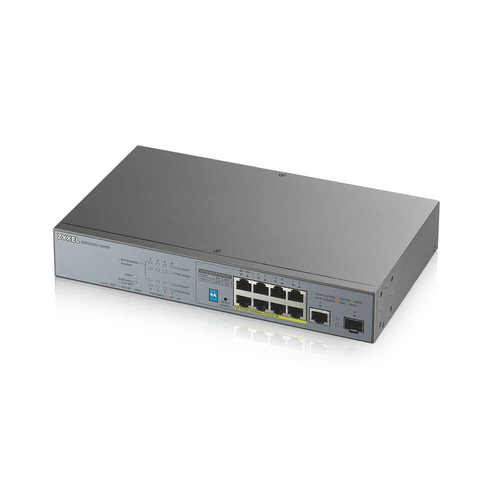

Zyxel GS1300-10HP, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, Wall mountable
Design For Surveillance Crafted for CCTV, Zyxel introduces the brand-new GS1300 unmanaged switch for surveillance applications.
New outlook Coated in titanium grey, the GS1300 excels with an eye-catching identity dedicated for surveillance Switch. On top of the conventional unmanaged switch, GS1300 comes with special design for CCTV adoption.
Easy for long-distance deployment The GS1300 series overcomes the 100 meter limitation of Ethernet, and fulfills the need to deploy IP camera or powered devices using existing Cat 5e cable to distant locations. By toggling the DIP switch to turn on the extended-range mode, instantly achieve distant deployments up to 250 meters. Save your money and effort with simply one PoE Switch.

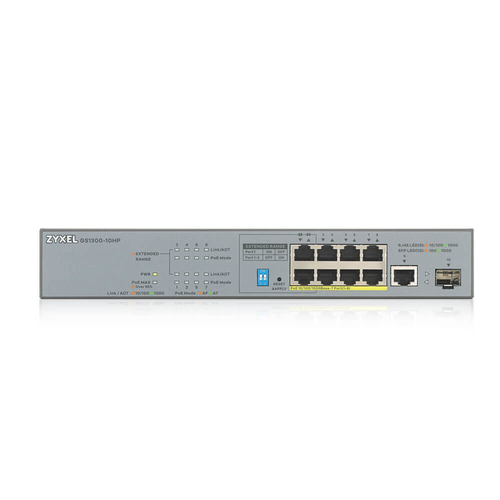

High power budget, intuitive front panel design The GS1300 series includes 3 models with a range of large power budgets from 130 W to 250 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status.
Best fit for surveillance installation Without the use of an adaptor, the internal power supply design is suitable for mounting onto server racks allowing more freedom and utilization of space.
Specifications
| Brand | ZYXEL |
|---|---|
| Manufacturer part no. | GS1300-10HP-GB0101F |
| Our part no. | B777025 |
| EAN | 4718937604203 |
| Category | Networking › Other (0432) |
| Weight | 2.5 kg |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.8 Mpps |
| MAC address table | 8000 entries |
| Packet buffer memory | 0.525 MB |
| Design | |
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Wall mountable | Yes |
| Electromagnetic compatibility | CE, FCC, C-Tick, A; BSMI CNS13438 |
| Performance | |
| Noise level | 44 dB |
| Mean time between failures (MTBF) | 394567 h |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 155.8 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 130 W |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 531.278 BTU/h |
| Weight & dimensions | |
| Width | 267 mm |
| Depth | 162 mm |
| Height | 44 mm |
| Weight | 1.65 kg |
| Packaging content | |
| Cables included | AC |
| Rack mount kit | Yes |
| Packaging data | |
| Package width | 337 mm |
| Package depth | 225 mm |
| Package height | 89 mm |
| Package weight | 2.5 kg |
| Certificates | |
| Certification | LVD EN62368-1, BSMI CNS14336-1, RoHS |
