Description

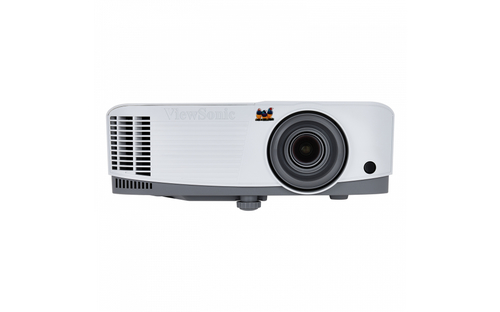

Viewsonic PA503X, 3600 ANSI lumens, DLP, XGA (1024x768), 4:3, 762 - 7620 mm (30 - 300"), 1.1 - 13 m
The ViewSonic PA503X price-performance projector features 3,600 lumens, native XGA 1024 x 768 resolution, and intuitive, user-friendly design. Exclusive SuperColor technology offers a wide color gamut for beautiful image production in nearly any environment. The PA503X also features extensive connectivity including HDMI, 2 x VGA, VGA out, Composite Video and audio in/out. An energy-saving SuperEco feature reduces power consumption and extends the lamp life by up to 15,000 hours. With advanced audio-visual features, flexible connectivity options, and an affordable price, the PA503X is ideal for use in education and small business environments.
SuperColor: Amazing Color Accuracy ViewSonic’s proprietary SuperColor Technology features an exclusive 6-segment color wheel and dynamic lamp control capabilities, providing a wide color range and stunningly beautiful images.
3D Blu-ray Ready HDMI Input Equipped with the latest HDMI, this projector is perfect for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with optional ViewSonic PGD-350 Shutter Glasses, or any other compatible 3D glasses.
Quick Power Off With the Quick Power Off feature enabled, the projector can be quickly powered off in seconds rather than waiting for a cool-down cycle to complete. This lets users pack the projector away without having to worry about the internal fan still running.
Industry-leading Warranty ViewSonic offers one of the industry's best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange service for an added value worth up to $150.
Specifications
| Brand | VIEWSONIC |
|---|---|
| Manufacturer part no. | PA503X |
| Our part no. | B922171 |
| EAN | 0766907905113 |
| Category | Projectors › Other (1304) |
| Weight | 3.5 kg |
| Projector | |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 1.1 - 13 m |
| Contrast ratio (dynamic) | 22000:1 |
| Projector brightness | 3600 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Native aspect ratio | 4:3 |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
| Matrix size | 1.4 cm (0.55") |
| Matrix type | DMD |
| Light source | |
| Light source type | Lamp |
| Service life of light source | 4500 h |
| Service life of light source (economic mode) | 15000 h |
| Lamp power | 190 W |
| Lamps quantity | 1 lamp(s) |
| Lens system | |
| Focus | Manual |
| Zoom capability | Yes |
| Zoom type | Manual |
| Optical zoom | 1.1x |
| Throw ratio | 1.96 - 2.15:1 |
| Video | |
| Analog signal format system | NTSC, PAL, PAL 60, SECAM |
| 3D Ready | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Ports & interfaces | |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| Composite video in | 1 |
| DVI port | No |
| AC (power) in | Yes |
| Network | |
| Ethernet LAN | No |
| Wi-Fi | No |
| Storage | |
| Card reader integrated | No |
| Features | |
| Certification | FCC (ICES-003), cTUVus |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Number of built-in speakers | 1 |
| Design | |
| Market positioning | Business |
| Product type | Standard throw projector |
| Product colour | Grey, White |
| Placement | Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 1499 m |
| Weight & dimensions | |
| Width | 294 mm |
| Depth | 218 mm |
| Height | 110 mm |
| Weight | 2.22 kg |
| Package width | 365 mm |
| Package depth | 300 mm |
| Package height | 188 mm |
| Package weight | 3.24 kg |
| Packaging content | |
| Remote control included | Yes |
| Cables included | AC, VGA |
| Quick start guide | Yes |
| Logistics data | |
| Pallet gross length | 74 cm |
| Pallet gross width | 90 cm |
| Pallet gross height | 2.21 m |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 8528620000 |
| Other features | |
| RS-232 ports | 1 |
