Description

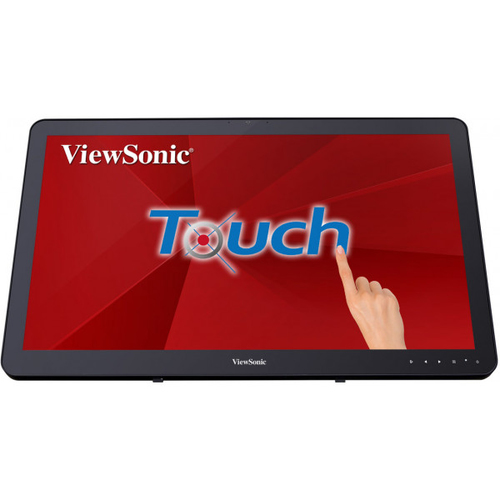

Viewsonic TD2430, 59.9 cm (23.6"), 1920 x 1080 pixels, Full HD, LCD, 5 ms, Black
- 10-point Projected Capacitive Touch - SuperClear® MVA-type panel technology - Frameless Design - Versatile Connectivity - Durable, Scratch-resistant Screen
Laid flat or angled for customized comfort, this display delivers touchscreen versatility to the max. Offering fantastic flexibility for retail, education, or business settings, the ViewSonic® TD2430 is a 24” (23.6” viewable) Full HD display with 10-point multi-touch functionality. Delivering adjustable positioning, wide-angle viewing, and a durable design, the TD2430 has everything to accommodate your unique needs. Adding even more convenience, cross-compatibility with a wide range of operating systems includes Windows 10, and certain Android and Linux versions.* With a sleek edge-to-edge screen and frameless bezel, this intuitive touchscreen performs like your favorite tablet or smartphone to deliver a highly accurate, ultra-responsive touch experience ideal for interactivity in public environments, kiosk and wayfinding applications, classroom settings, and more.
*Supports Windows 7/8/10, Linux 2.6.38 or later, and Android 4.0 or later.
Specifications
| Brand | VIEWSONIC |
|---|---|
| Manufacturer part no. | TD2430 |
| Our part no. | B922432 |
| EAN | 0766907846911 |
| Category | Monitors & Displays › Other (0352) |
| Weight | 7.2 kg |
| Display | |
| Display diagonal | 59.9 cm (23.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | VA |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 200 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 50000000:1 |
| Maximum refresh rate | 76 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2715 x 0.2715 mm |
| Horizontal scan range | 24 - 82 kHz |
| Vertical scan range | 50 - 75 Hz |
| Display diagonal (metric) | 60 cm |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 5 W |
| Built-in speaker(s) | Yes |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Product colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| Number of USB Type-B upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 20 - 53° |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 15 kWh |
| Power consumption (typical) | 25 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width (with stand) | 573 mm |
| Depth (with stand) | 47 mm |
| Height (with stand) | 353 mm |
| Weight (with stand) | 5.51 kg |
| Packaging data | |
| Package width | 643 mm |
| Package depth | 140 mm |
| Package height | 435 mm |
| Package weight | 7.1 kg |
| Packaging content | |
| Cables included | AC, Audio (3.5mm), HDMI, USB |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, ErP |
| Other features | |
| Display viewable area (HxV) | 521.28 x 293.22 mm |
| Mobile operating systems supported | Android |
| Weight | 5.5 kg |
| Compliance certificates | CE, REACH, RoHS |
| Certification | cTUVus, FCC-B, ICES003, Energy Star 8.0, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, CCC, China RoHS, China Energy Label, CECP |
| Technical details | |
| Native refresh rate | 60 Hz |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 189 cm |
| Harmonized System (HS) code | 8528521000 |
