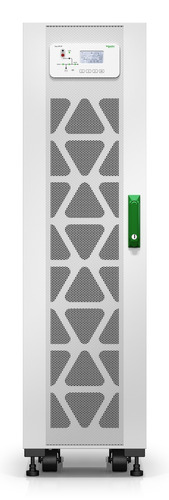

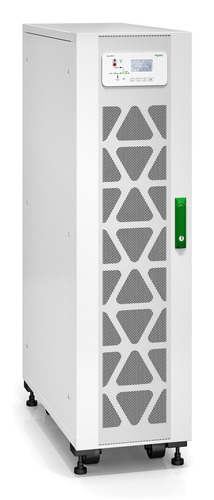

APC Easy UPS 3S 10 kVA 400 V 3:1 UPS for internal batteries

Description

APC Easy UPS 3S 10 kVA 400 V 3:1 UPS for internal batteries, Double-conversion (Online), 10 kVA, 10000 W, 304 V, 477 V, 45/65 Hz

This high-efficiency 3-phase UPS E3SUPS10K3IB features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime.

Specifications

BrandAPC
Manufacturer part no.E3SUPS10K3IB
Our part no.CA03473
EAN0731304340720
CategoryPower & UPS › UPS
Weight141.5 kg
Features
UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power10000 W
Input operation voltage (min)304 V
Input operation voltage (max)477 V
Input frequency45/65 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Maximum current18 A
Power factor0.99
Crest factor3:1
Output voltage Total Harmonic Distortion (THD)5.5%
Ports & interfaces
AC outlet typesHardwire
Battery
Battery technologySealed Lead Acid (VRLA)
Battery voltage240 V
Design
Form factorRackmount
Product colourWhite
International Protection (IP) codeIP20
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 55 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Certificates
Compliance certificatesRoHS
CertificationCE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
Packaging content
ManualYes
Weight & dimensions
Width380 mm
Depth907 mm
Height1400 mm
Weight130 kg
Packaging data
Package width563 mm
Package depth1014 mm
Package height1640 mm
Package weight145 kg
Logistics data
Harmonized System (HS) code85078000
