Description
APC E3SUPS30K3IB2, Double-conversion (Online), 30 kVA, 30000 W, 400 V, 477 V, 45/65 Hz

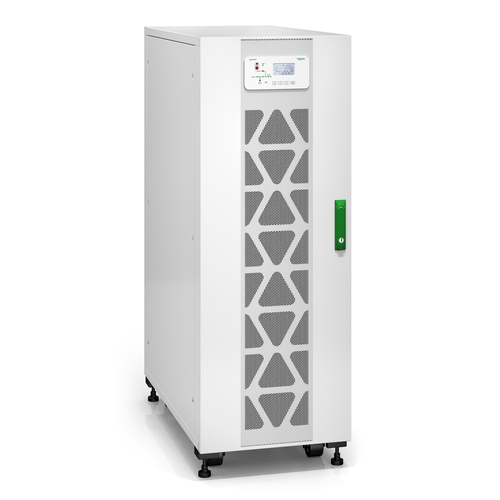

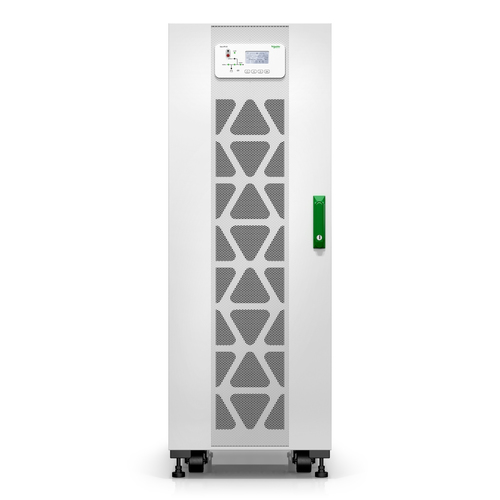

Easy UPS 3S 30 kVA 400 V 3:1 UPS with internal batteries - 25 minutes runtime
High-efficiency 3-phase UPS with internal batteries providing a runtime of 25 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.
Includes: Dust filter, Installation guide
Optional SNMP Card When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
Replaceable dust filters protect the UPS in harsh environments.
Parallel capability Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Wide Input Voltage Window Saves your battery power for when you really need it - during power cuts!
Easy Loop Test Verifies UPS performance before you connect your load, without the need for a load bank.
Intuitive user interface The intuitive graphical user interface allows for easy system configuration.
Easy to install fast Quickly roll the compact and lightweight UPS into position.
ECO Mode Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Front-access servicing Simplifies installation and UPS maintenance while minimizing space requirements.
Straightforward installation Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | E3SUPS30K3IB2 |
| Our part no. | CA03585 |
| EAN | 0731304428268 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Input operation voltage (min) | 400 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Power factor | 0.99 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 5.5% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Design | |
| Form factor | Rackmount |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Weight & dimensions | |
| Width | 500 mm |
| Depth | 996 mm |
| Height | 1400 mm |
| Weight | 293 kg |
| Packaging data | |
| Package width | 683 mm |
| Package depth | 1114 mm |
| Package height | 1640 mm |
| Package weight | 297 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
