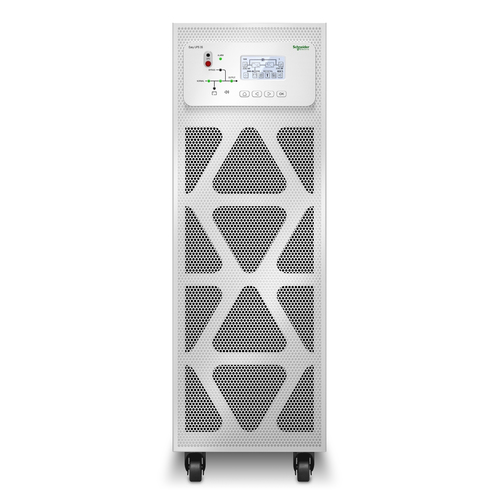

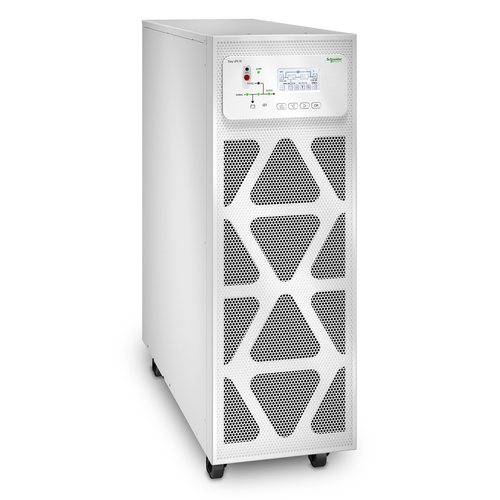

APC Easy UPS 3S 20 kVA 400 V 3:1 UPS for external batteries

Description

APC Easy UPS 3S 20 kVA 400 V 3:1 UPS for external batteries, Double-conversion (Online), 20 kVA, 20000 W, 304 V, 477 V, 45/65 Hz

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution. Ideal for small and medium businesses.

Specifications

BrandAPC
Manufacturer part no.E3SUPS20K3I
Our part no.CA03799
EAN0731304340768
CategoryPower & UPS › UPS
Weight75 kg
Features
UPS topologyDouble-conversion (Online)
Output power capacity20 kVA
Output power20000 W
Input operation voltage (min)304 V
Input operation voltage (max)477 V
Input frequency45/65 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Maximum current37 A
Power factor0.99
Design
Form factorRackmount
Product colourWhite
International Protection (IP) codeIP20
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Certificates
Compliance certificatesRoHS
CertificationCE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
Packaging content
ManualYes
Weight & dimensions
Width250 mm
Depth800 mm
Height770 mm
Weight58 kg
Packaging data
Package width400 mm
Package depth982 mm
Package height1015 mm
Package weight75 kg
Logistics data
Harmonized System (HS) code85078000
