Description

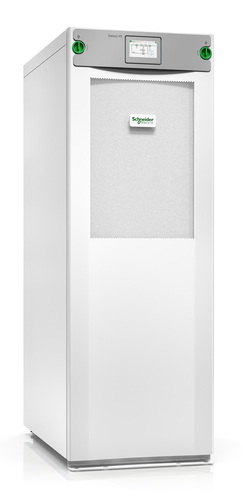

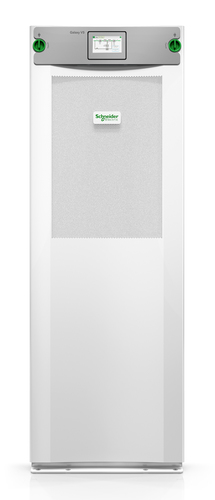

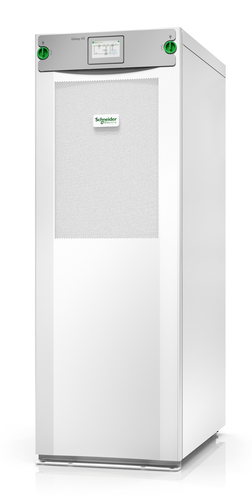

APC Galaxy VS UPS 100kW 400V for External Batteries, Start-up 5x8, Double-conversion (Online), 100 kVA, 100000 W, Sine, 340 V, 460 V
This Galaxy VS UPS GVSUPS100KHS Highly efficient, easy-to-deploy 100kW, 400V 3-phase uninterruptible power supply (UPS). Brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Galaxy VS reduces your energy losses by up to 66% with eConversion mode – reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in double conversion mode. The UPS is EcoStruxure connected to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5x8 start-up service.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | GVSUPS100KHS |
| Our part no. | CA04636 |
| EAN | 0731304342625 |
| Category | Power & UPS › Other (0151) |
| Weight | 0 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 100 kVA |
| Output power | 100000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 182 A |
| Heat dissipation | 9499.4 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 96.8% |
| Input power factor | 0.99 |
| Crest factor | 2.5:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 65 dB |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP21 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 984.3 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
| Packaging content | |
| Management card included | Yes |
| Weight & dimensions | |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 250 kg |
| Packaging data | |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
| Package weight | 275 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Warranty period | 1 year(s) |
| Other features | |
| Nominal output voltage | 400 V |
| Nominal input voltage | 400 V |
