Description

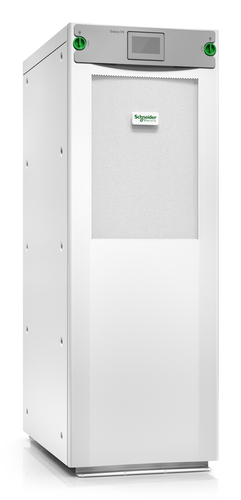

APC Galaxy VS UPS 40kW 400V, 2 internal 9Ah smart modular battery strings, expandable to 4, Start-up 5x8, Double-conversion (Online), 40 kVA, 40000 W, Sine, 340 V, 460 V
This Galaxy VS UPS GVSUPS40KB4HS is a highly efficient, easy-to-deploy 40kW, 400V 3-phase UPS. Brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 2 smart high-capacity modular battery strings, expandable to 4 strings for extended runtime.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | GVSUPS40KB4HS |
| Our part no. | CA04753 |
| EAN | 0731304406778 |
| Category | Power & UPS › Other (0151) |
| Weight | 490 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 40 kVA |
| Output power | 40000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 54 A |
| Heat dissipation | 4658 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Crest factor | 2.5:1 |
| ECO mode | Yes |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 61 dB |
| Power protection features | Overload, Short circuit |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| AC outlet types | Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G) |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 480 V |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1000 m |
| Non-operating altitude | 0 - 3000 m |
| Certificates | |
| Certification | CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
| Packaging content | |
| Management card included | Yes |
| Quick installation guide | Yes |
| Weight & dimensions | |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 460 kg |
| Packaging data | |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
| Package weight | 490 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Warranty period | 1 year(s) |
