Description

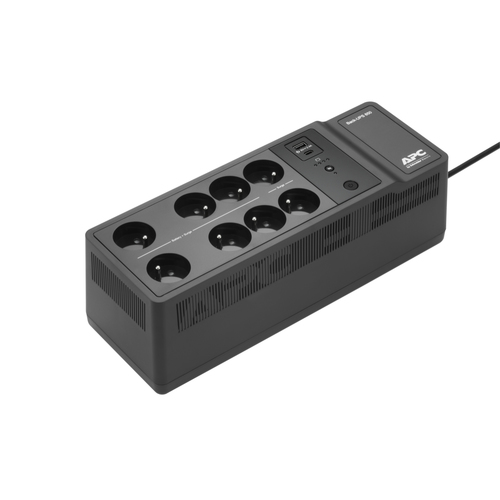

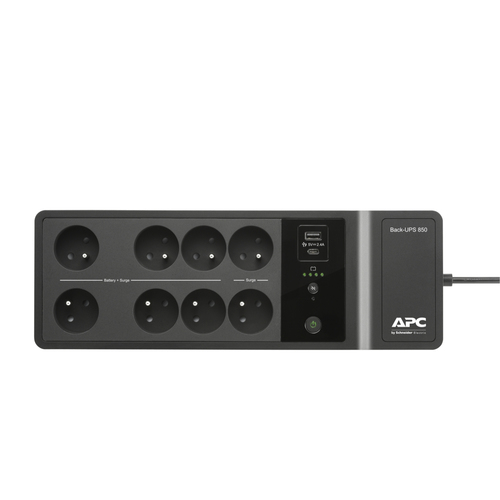

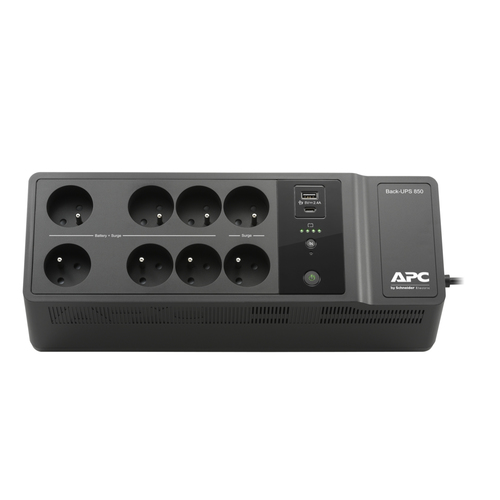

APC BE850G2-FR, Standby (Offline), 0.85 kVA, 520 W, Sine, 220 V, 230 V

Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Audible alarms Provides notification of changing utility power and UPS power conditions

Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery charging indicator Lets you know when your battery is charging and when it is fully charged.

Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Building Wiring Fault Indicator This LED informs users of potentially dangerous wiring problems in the wall circuit.

Cold-start capable Provides temporary battery power when the utility power is out.

Dataline surge protection Provides protection of connected equipment from power surges on the data lines.

Disconnected battery notification Warns when a battery is not available to provide backup power.

Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Simple battery replacement Increases UPS availability by allowing quick, easy battery replacement.

USB charging ports Simultaneously charge mobile devices, including smartphones and tablets.

USB connection Use your PC to access additional power protection and management features for your UPS via a USB Port.

User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Specifications

BrandAPC
Manufacturer part no.BE850G2-FR
Our part no.CA04770
EAN0731304347279
CategoryPower & UPS › UPS
Weight5.1 kg
Features
UPS topologyStandby (Offline)
Output power capacity0.85 kVA
Output power520 W
WaveformSine
Input operation voltage (min)220 V
Input operation voltage (max)230 V
Input frequency47/63 Hz
Output operation voltage (min)220 V
Output operation voltage (max)230 V
Output frequency47/63 Hz
Maximum current6 A
Surge energy rating310 J
Efficiency80%
Noise level45 dB
Surge protectionYes
Surge protection featuresDigital Subscriber Line (DSL)
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Low battery alarm, Overload alarm
Ports & interfaces
AC outlet typesType E
USB portYes
USB port typeUSB Type-C
Ethernet LAN (RJ-45) ports1
Cabling technology10/100Base-T
SmartSlotNo
SmartConnect portNo
Battery
Battery life (max)5 year(s)
Battery recharge time16 h
Replacement battery cartridge1
Design
Form factorCompact
Cable length1.83 m
Product colourBlack
LED indicatorsYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 95%
Non-operating altitude0 - 4500 m
Certificates
Compliance certificatesRoHS
CertificationCE, EAC
Packaging content
Management card includedNo
ManualYes
Weight & dimensions
Width130 mm
Depth365 mm
Height120 mm
Weight4.5 kg
Packaging data
Package width186 mm
Package depth441 mm
Package height190 mm
Package weight5 kg
Logistics data
Harmonized System (HS) code85078000
