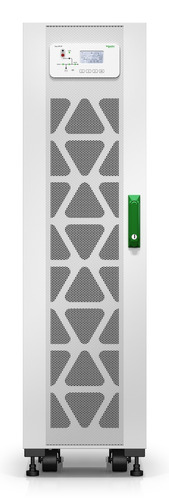

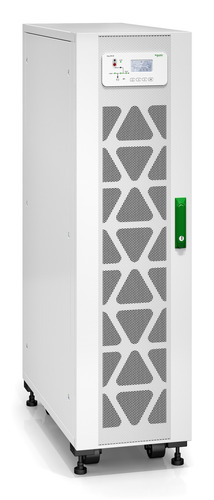

APC Easy UPS 3S 15 kVA 400V 3:1 UPS, 1 internal 7Ah modular battery string, expandable to 3

Description

APC Easy UPS 3S 15 kVA 400V 3:1 UPS, 1 internal 7Ah modular battery string, expandable to 3, Double-conversion (Online), 15 kVA, 15000 W, 380 V, 415 V, 45/65 Hz

Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 15 kVA 3:1 UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 1 internal 7 Ah modular battery strings, expandable to 3 strings for extended runtime.

Specifications

BrandAPC
Manufacturer part no.E3SUPS15K3IB1
Our part no.CA04946
EAN0731304428176
CategoryPower & UPS › UPS
Weight272.5 kg
Features
UPS topologyDouble-conversion (Online)
Output power capacity15 kVA
Output power15000 W
Input operation voltage (min)380 V
Input operation voltage (max)415 V
Input frequency45/65 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Power factor0.99
Crest factor3:1
Noise level60 dB
Ports & interfaces
AC outlet typesHardwire
Battery
Battery technologySealed Lead Acid (VRLA)
Battery capacity40 Ah
Battery voltage240 V
Number of batteries supported1
Design
Product colourWhite
International Protection (IP) codeIP20
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Certificates
Compliance certificatesRoHS
CertificationCE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
Weight & dimensions
Width380 mm
Depth907 mm
Height1400 mm
Weight71.2 kg
Packaging data
Package width563 mm
Package depth1014 mm
Package height1640 mm
Package weight173 kg
Logistics data
Harmonized System (HS) code85078000
