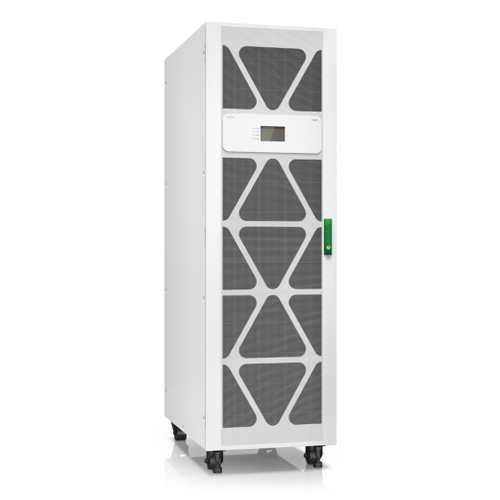

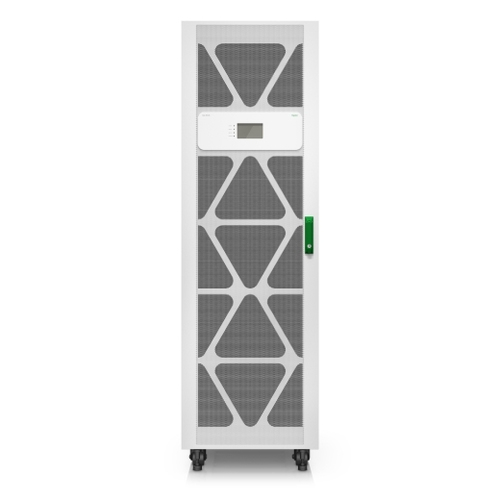

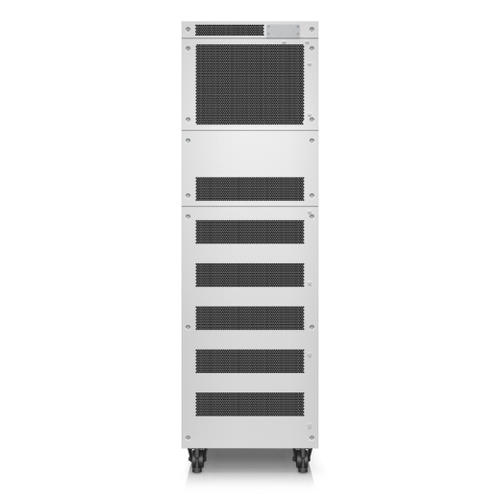

APC Easy UPS 3M 60kVA 400V 3:3 UPS, 3 internal 9Ah modular battery strings expandable to 6, Start-up 5x8

Description

APC Easy UPS 3M 60kVA 400V 3:3 UPS, 3 internal 9Ah modular battery strings expandable to 6, Start-up 5x8, Double-conversion (Online), 60 kVA, 60 W, Sine, 342 V, 477 V

Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 60 kVA 3-phase UPS. With advanced product features, robust electrical specifications and compact design, the Easy UPS 3M UPS makes business continuity easy for small and medium data centers and other business critical applications. Includes 5x8 start-up service and 3 internal 9 Ah modular battery strings, expandable to 6 for extended runtime.

Specifications

BrandAPC
Manufacturer part no.E3MUPS60KHB1S
Our part no.CA05879
CategoryPower & UPS › UPS
Weight360 kg
Features
UPS topologyDouble-conversion (Online)
Output power capacity60 kVA
Output power60 W
WaveformSine
Input operation voltage (min)342 V
Input operation voltage (max)477 V
Input frequency40 - 70 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Output frequency50/60 Hz
Power factor0.99
Output voltage Total Harmonic Distortion (THD)3%
Input current Total Harmonic Distortion (THD)3%
Audible alarm(s)Yes
Battery
Battery technologySealed Lead Acid (VRLA)
Battery voltage240 V
Design
Form factorTower
Product colourWhite
International Protection (IP) codeIP20
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Certificates
Compliance certificatesRoHS
CertificationCE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
Weight & dimensions
Width600 mm
Depth1000 mm
Height1970 mm
Weight311 kg
Packaging data
Package width750 mm
Package depth1125 mm
Package height2102 mm
Package weight360 kg
Logistics data
Harmonized System (HS) code85078000
