Description

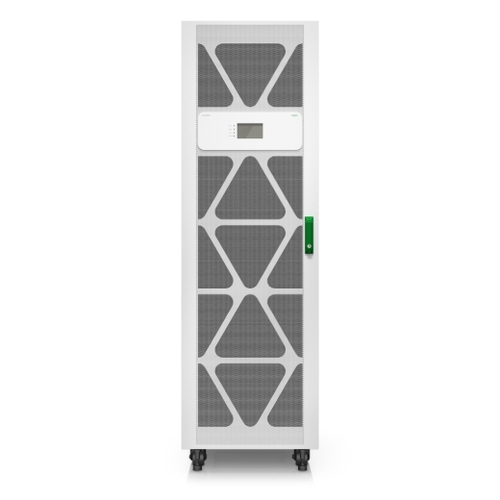

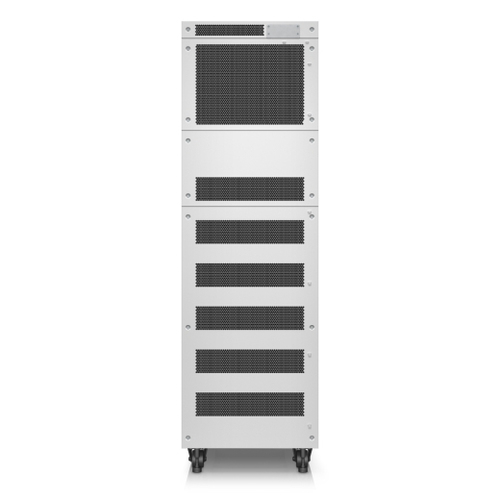

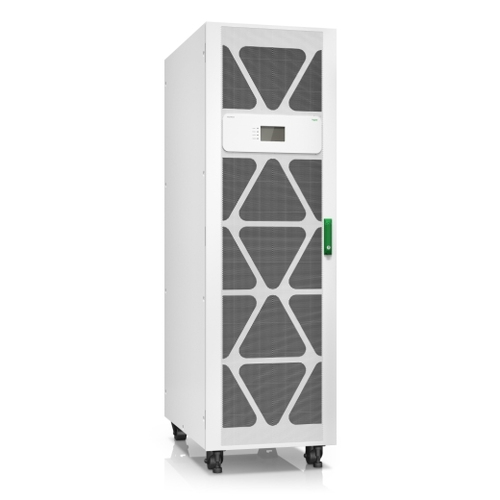

APC Easy UPS 3M 80kVA 400V 3:3 UPS, 4 internal 9Ah modular battery strings expandable to 6, Start-up 5x8, Double-conversion (Online), 80 kVA, 80000 W, Sine, 342 V, 477 V
This Easy UPS 3M E3MUPS80KHB1S is easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 80 kVA, 400V 3-phase UPS. With advanced product features, robust electrical specifications and compact design, the Easy UPS 3M UPS makes business continuity easy for small and medium data centers and other business critical applications. Includes 5x8 start-up service and 4 internal 9Ah modular battery strings, expandable to 6 for extended runtime.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | E3MUPS80KHB1S |
| Our part no. | CA05880 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 80 kVA |
| Output power | 80000 W |
| Waveform | Sine |
| Input operation voltage (min) | 342 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 3% |
| Maximum current | 146 A |
| Input power factor | 0.99 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 65 dB |
| Audible alarm(s) | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Typical backup time at full load | 9.3 min |
| Charging current | 222 A |
| Design | |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1000 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Packaging content | |
| Quick installation guide | Yes |
| Weight & dimensions | |
| Width | 600 mm |
| Depth | 1000 mm |
| Height | 1970 mm |
| Weight | 339 kg |
| Packaging data | |
| Package width | 750 mm |
| Package depth | 1125 mm |
| Package height | 2102 mm |
| Package weight | 387 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
