Description

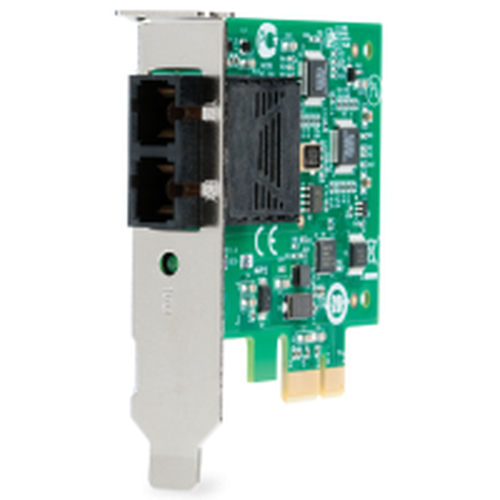

Allied Telesis AT-2711FX/LC-901, Internal, Wired, PCI Express, Fiber, 100 Mbit/s
Specifications
| Brand | ALLIED TELESIS |
|---|---|
| Manufacturer part no. | AT-2711FX/LC-901 |
| Our part no. | CA05898 |
| EAN | 0767035196534 |
| Category | Networking › Network Cards & Line Cards |
| Weight | 0.1 kg |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| PCI version | 1.0 |
| Network | |
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100BaseT(X) |
| Security algorithms | SNMP |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Quality of Service (QoS) support | Yes |
| VLAN tagging | Yes |
| Design | |
| Internal | Yes |
| LED indicators | Yes |
| Power | |
| Power consumption (typical) | 2 W |
| System requirements | |
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 121 mm |
| Height | 69 mm |
| Weight | 50 g |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Flow control support | Yes |
| Receive Side Scaling (RSS) | Yes |
| ACPI version | 2.0 |
