Description

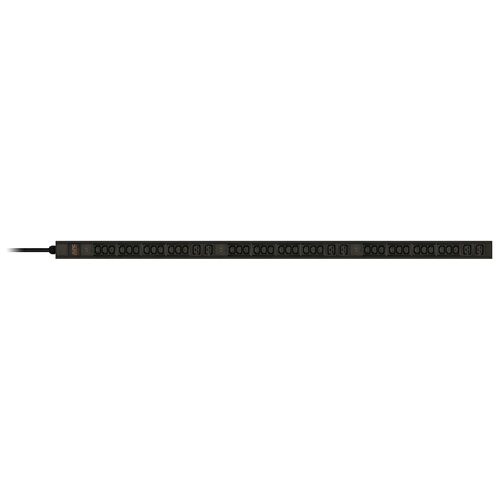

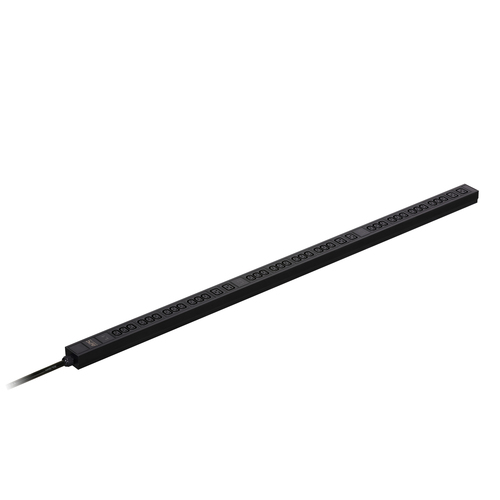

APC Easy Rack PDU, Basic, 0U, 3 Phase, 11kW, 230V, 16A, 36 x C13 and 6 x C19 outlets, IEC60309 3P+N+PE inlet, Basic, 0U, Three-phase, Vertical, Aluminium, Black
APC Easy Basic Rack PDU EPDU1216B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1216B has IEC 309 16A 3P+N+E type inlet, Thirty six IEC C13 and six IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Saves time and money during installation by using one branch whip and standard connections. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | EPDU1216B |
| Our part no. | CA05973 |
| EAN | 0731304405054 |
| Category | Power & UPS › PDUs |
| Weight | 3 kg |
| Design | |
| PDU types | Basic |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Aluminium |
| Product colour | Black |
| On/off switch | No |
| Ports & interfaces | |
| AC outlets quantity | 42 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| Cable length | 2.5 m |
| Power | |
| Nominal input voltage | 400 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 230 V |
| Load capacity | 11000 VA |
| Maximum input current per phase | 16 A |
| Maximum power | 11000 W |
| Certificates | |
| Certification | CE, TUV |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 62 mm |
| Depth | 44 mm |
| Height | 1506 mm |
| Weight | 3.08 kg |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package weight | 4.28 kg |
| Package width | 160 mm |
| Package depth | 110 mm |
| Package height | 1660 mm |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 78.59 |
