Description

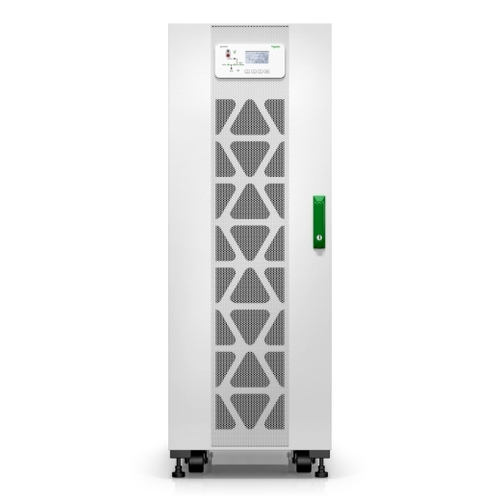

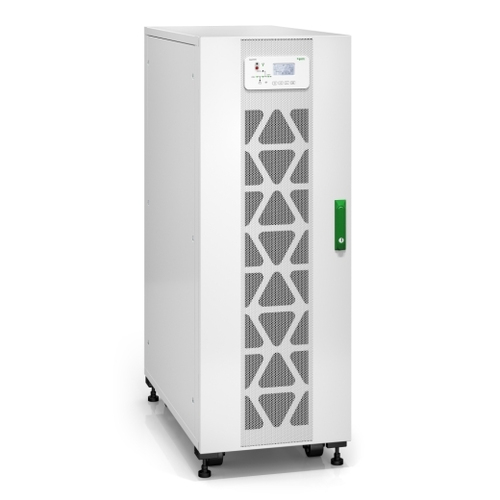

APC Easy UPS 3S 30 kVA 400V 3:1 UPS, 2 internal 7Ah modular battery strings, expandable to 4, Double-conversion (Online), 30 kVA, 30000 W, 304 V, 477 V, 45/65 Hz
Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 30 kVA 3:1 UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 2 internal 7 Ah modular battery strings, expandable to 4 strings for extended runtime.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | E3SUPS30K3IB1 |
| Our part no. | CA05993 |
| Category | Power & UPS › UPS |
| Weight | 213 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Maximum current | 55 A |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 5.5% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Noise level | 63 dB |
| Power protection features | Overload |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Number of batteries supported | 2 |
| Battery weight | 213 kg |
| Design | |
| Form factor | Tower |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 984.3 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | REACH CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Packaging content | |
| Quick installation guide | Yes |
| Weight & dimensions | |
| Width | 500 mm |
| Depth | 996 mm |
| Height | 1400 mm |
| Weight | 212 kg |
| Battery width | 68.3 cm |
| Battery depth | 111.4 cm |
| Battery height | 164 cm |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
