Description

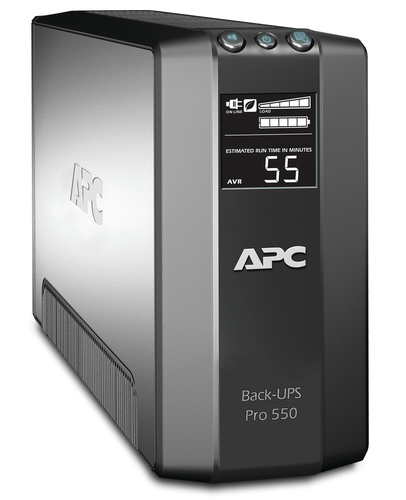

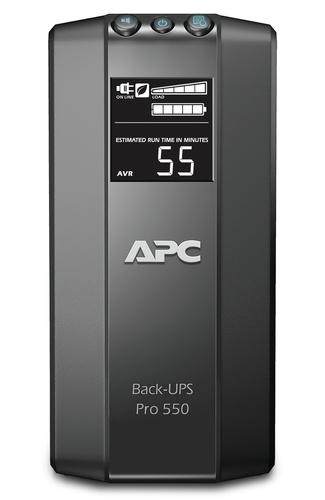

APC Back-UPS Pro, Line-Interactive, 0.55 kVA, 330 W, Sine, 155 V, 290 V
Automatically cuts power to idle equipment to conserve electricity.
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | BR550GI |
| Our part no. | CA06089 |
| EAN | 0731304266884 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 0.55 kVA |
| Output power | 330 W |
| Waveform | Sine |
| Input operation voltage (min) | 155 V |
| Input operation voltage (max) | 290 V |
| Input frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Maximum current | 6 A |
| Surge energy rating | 420 J |
| Hold time (min) | 6 ms |
| Hold time (max) | 10 ms |
| Efficiency | 98.2% |
| Noise level | 45 dB |
| Surge protection | Yes |
| Surge protection features | Network |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Ports & interfaces | |

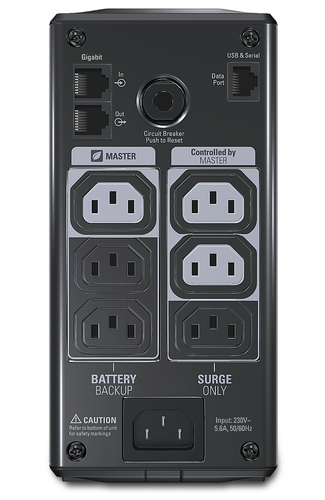

| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| USB port | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 66 VAh |
| Typical backup time at full load | 3.2 min |
| Typical backup time at half load | 11.8 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 12 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Replacement battery cartridge | APCRBC110 |
| Design | |
| Cable length | 1.83 m |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | A-tick, C-tick, CE, GOST, GS Mark, REACH, PEP, EOLI |
| Packaging content | |
| Cables included | USB cable |
| Manual | Yes |
| Weight & dimensions | |
| Width | 91 mm |
| Depth | 310 mm |
| Height | 190 mm |
| Weight | 6.53 kg |
| Packaging data | |
| Warranty card | Yes |
| Software CD | Yes |
| Bundled software | PowerChute Personal Edition |
| Package width | 138 mm |
| Package depth | 442 mm |
| Package height | 252 mm |
| Package weight | 7.71 kg |
| Logistics data | |
| Products per pallet | 48 pc(s) |
| Products per master (outer) case | 2 pc(s) |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
