Description

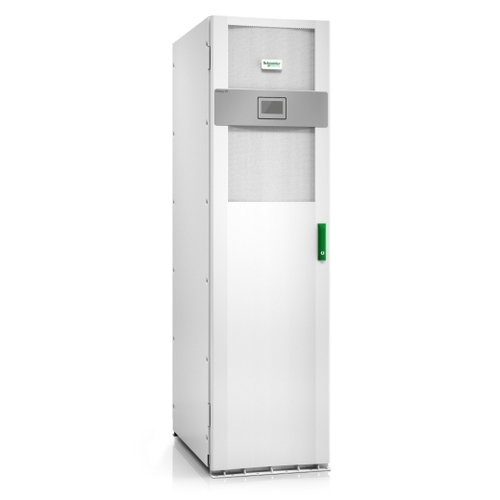

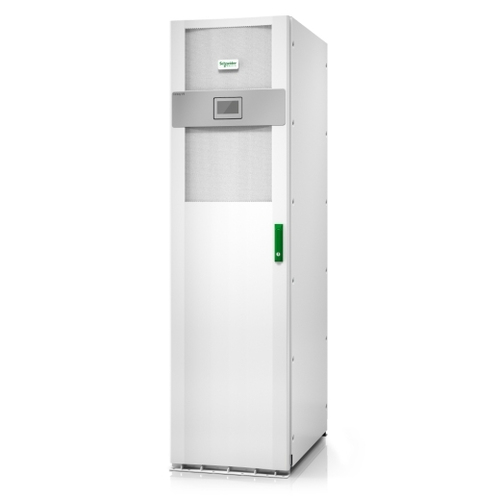

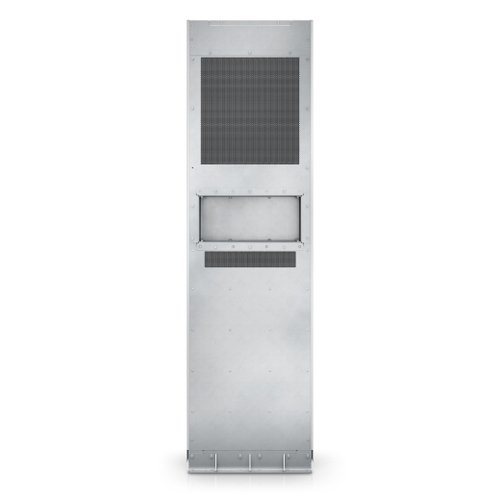

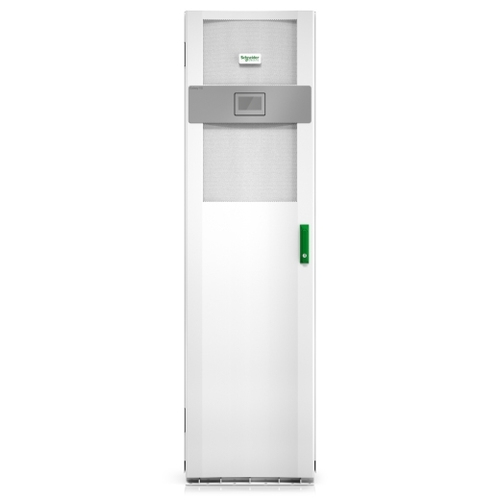

APC Galaxy VS UPS 50kW 400V with N+1 power module, for 5 smart modular 9Ah battery strings, Start-up 5x8, Double-conversion (Online), 50 kVA, 50000 W, Sine, 340 V, 460 V
Highly efficient, easy-to-deploy 50 kW, 400 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 5 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service and one additional power module for N+1 redundancy.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | GVSUPS50KR0B5HS |
| Our part no. | CA07477 |
| EAN | 0731304410140 |
| Category | Power & UPS › Other (0151) |
| Weight | 0 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 50 kVA |
| Output power | 50000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | -0.1% |
| Maximum current | 90 A |
| Heat dissipation | 5375 BTU/h |
| Input power factor | 0.99 |
| Crest factor | 2.5:1 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 54 dB |
| Audible alarm(s) | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 480 V |
| Charging current | 136 A |
| Design | |
| Form factor | Mini Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 990 m |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 550 mm |
| Depth | 847 mm |
| Height | 1970 mm |
| Weight | 250 kg |
| Packaging data | |
| Package width | 755 mm |
| Package depth | 1010 mm |
| Package height | 2082 mm |
| Package weight | 250 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Warranty period | 1 year(s) |
