Description

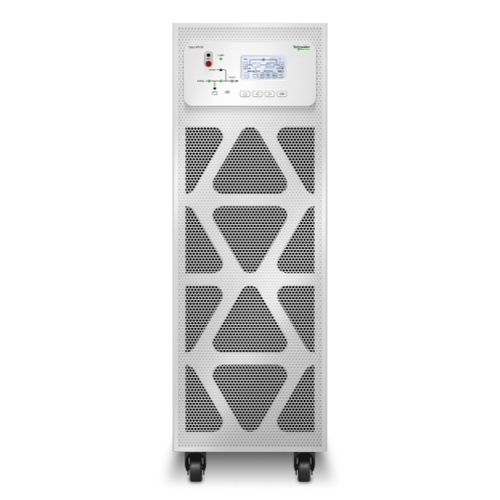

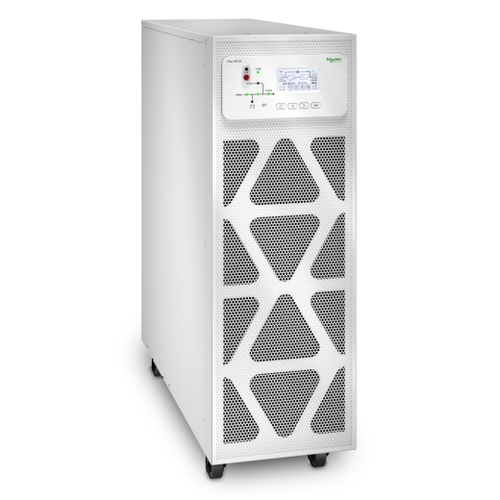

APC E3SUPS30K3I, Double-conversion (Online), 30 kVA, 30000 W, 304 V, 477 V, 45/65 Hz
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | E3SUPS30K3I |
| Our part no. | CA07549 |
| EAN | 0731304340799 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Power factor | 0.99 |
| Crest factor | 3:1 |
| Noise level | 63 dB |
| Design | |
| Form factor | Tower |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1000 m |
| Non-operating altitude | 0 - 15240 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Weight & dimensions | |
| Width | 250 mm |
| Depth | 800 mm |
| Height | 770 mm |
| Weight | 60 kg |
| Packaging data | |
| Package width | 400 mm |
| Package depth | 982 mm |
| Package height | 1015 mm |
| Package weight | 77 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
