Description

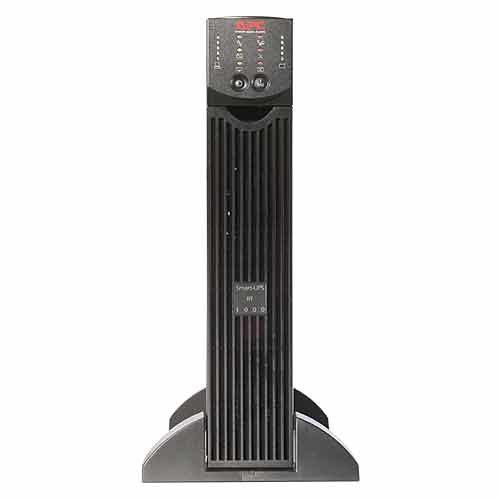

APC Smart-UPS RT 1000VA, 230V, 6x IEC 60320 & 2x IEC Jumpers outlets, Double-conversion (Online), 1 kVA, 700 W, Sine, 100 V, 280 V
High density, double-conversion on-line power protection with scalable runtime.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SURT1000XLI |
| Our part no. | CA08327 |
| EAN | 0731304205418 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1 kVA |
| Output power | 700 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency regulation | 50/60 Hz |
| Surge energy rating | 420 J |
| Efficiency | 89.1% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | O |
| Noise level | 50 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Auto-restart | Yes |
| Ports & interfaces | |

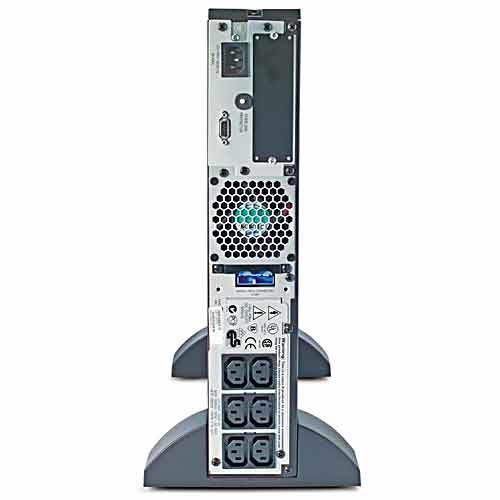

| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 328 VAh |

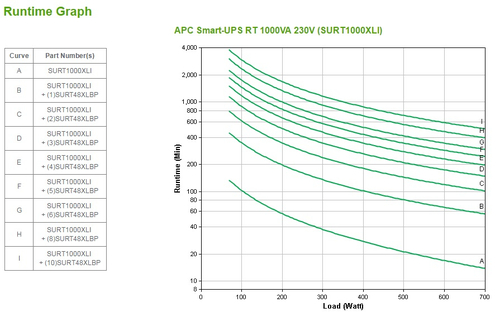

| Typical backup time at full load | 13.8 min |
| Typical backup time at half load | 32 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Product colour | Black |
| LED indicators | Battery replacement |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE, REACH, PEP, EOLI |
| Packaging content | |
| Cables included | RS-232 |
| Manual | Yes |
| Weight & dimensions | |
| Width | 85 mm |
| Depth | 483 mm |
| Height | 432 mm |
| Weight | 23 kg |
| Packaging data | |
| Software CD | Yes |
| Package width | 630 mm |
| Package depth | 594 mm |
| Package height | 286 mm |
| Package weight | 27.8 kg |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Products per master (outer) case | 1 pc(s) |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
