Description

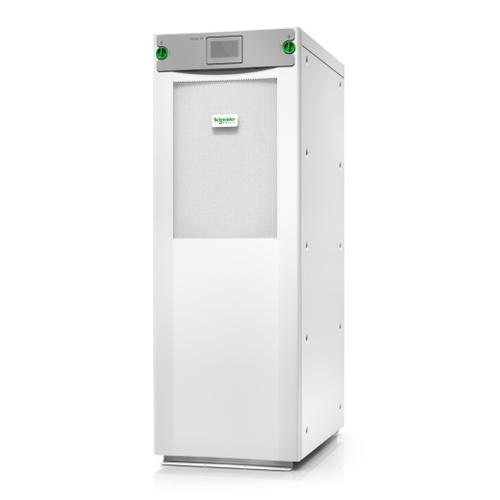

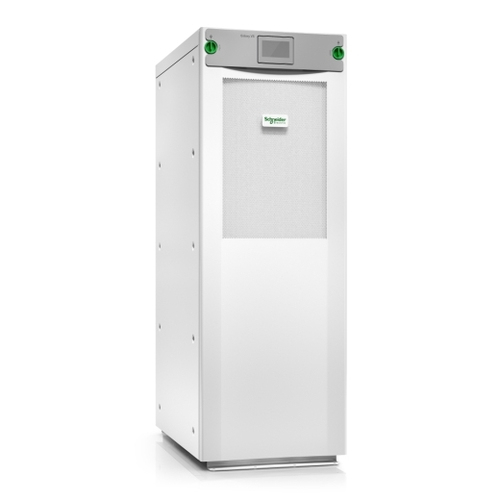

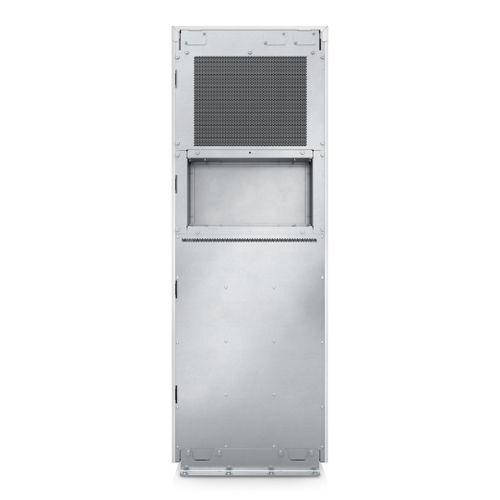

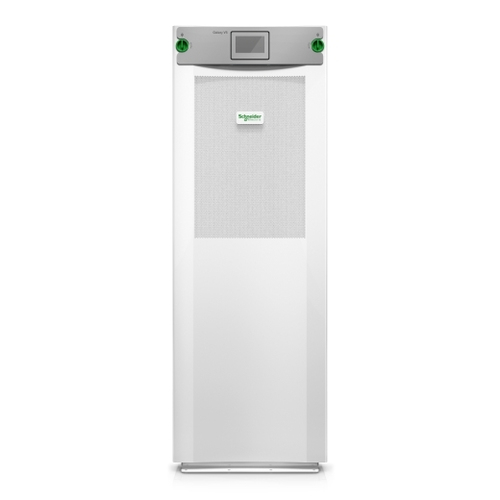

APC Galaxy VS UPS 30kW 400V for up to 4 internal 9Ah smart modular battery strings, Start-up 5x8, Double-conversion (Online), 30 kVA, 30000 W, Sine, 340 V, 460 V
Highly efficient, easy-to-deploy 30 kW, 400 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 4 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | GVSUPS30K0B4HS |
| Our part no. | CA08719 |
| EAN | 0731304413943 |
| Category | Power & UPS › Other (0151) |
| Weight | 256.5 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 1% |
| Maximum current | 54 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Crest factor | 2.5:1 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 65 dB |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| AC outlet types | Hard Wire 5-wire (3PH + N + G) |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 480 V |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1005.8 m |
| Non-operating altitude | 0 - 3048 m |
| Certificates | |
| Certification | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Packaging content | |
| Management card included | Yes |
| Manual | Yes |
| Weight & dimensions | |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 200 kg |
| Packaging data | |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
| Package weight | 200 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
