Description

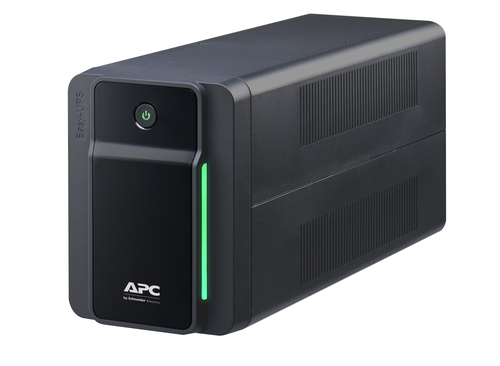

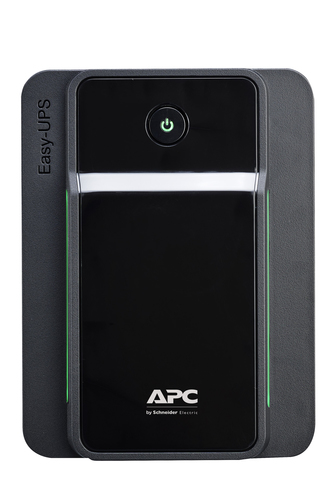

APC BVX700LI, Line-Interactive, 0.7 kVA, 360 W, Sine, 170 V, 280 V
Access monitoring Detect access by unauthorized personnel via door switch.
Transformer-block spaced outlets Protect equipment with input transformer blocks without blocking access to other receptacles.
Sleek design Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Cold-start capable Provides temporary battery power when the utility power is out.
Boost Automatic Voltage Regulation (AVR) Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Advanced Safety Features Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Battery backup and surge protection Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery and surge protected outlets Back up and protect your hardware and data during power outages, surges and spikes.
LED Indicators Provide easy-to-read status of the unit and utility power conditions.
Audible alarms Provides notification of changing utility power and UPS power conditions
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | BVX700LI |
| Our part no. | CA26447 |
| EAN | 0731304404484 |
| Category | Power & UPS › UPS |
| Weight | 4.7 kg |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 0.7 kVA |
| Output power | 360 W |
| Waveform | Sine |
| Input operation voltage (min) | 170 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 0.5 Hz |
| Output voltage regulation | 10% |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 273 J |
| Response time | 6 ms |
| Input power factor | 0.51 |
| Noise level | 40 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Battery replacement, Low battery alarm, Overload alarm |
| Ports & interfaces | |

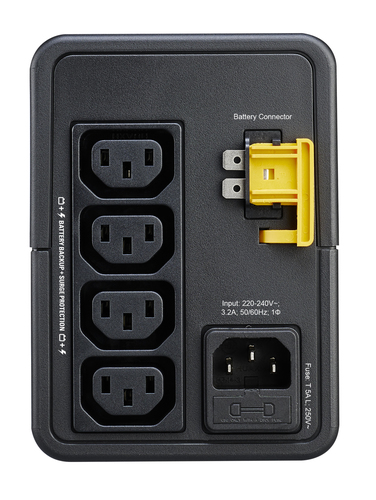

| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| SmartSlot | No |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 7 Ah |
| Battery voltage | 12 V |
| Battery life (max) | 2 year(s) |
| Battery recharge time | 8 h |
| Cold start | Yes |
| Design | |
| Form factor | Compact |
| Product colour | Black |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Certificates | |
| Certification | CB, CE, EN/IEC 62040-1, EN/IEC 62040-2 |
| Packaging content | |
| Cables included | Input power cable |
| Management card included | No |
| Manual | Yes |
| Weight & dimensions | |
| Width | 31 mm |
| Depth | 138 mm |
| Height | 98 mm |
| Weight | 4.5 kg |
| Packaging data | |
| Package width | 222 mm |
| Package depth | 346 mm |
| Package height | 142 mm |
| Package weight | 4.5 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
