Description

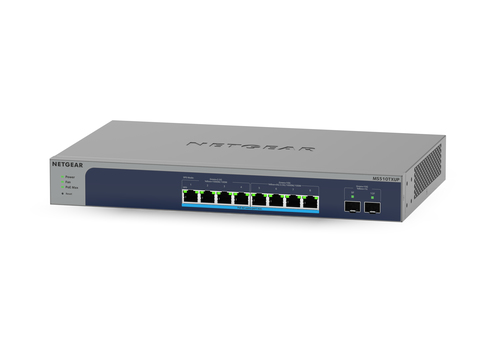

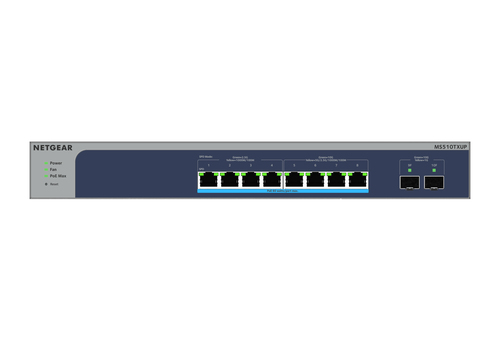

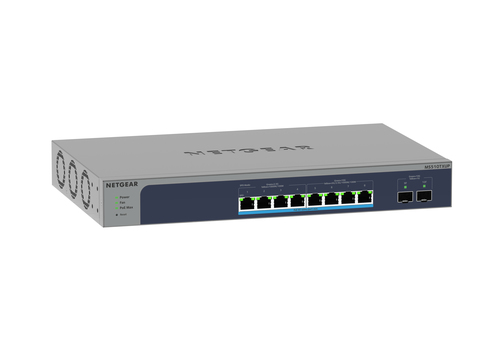

NETGEAR 8-Port Multi-Gigabit/10g Ethernet Ultra60 PoE++ Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXUP), Managed, L2+, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting
NETGEAR Smart Managed Pro Switches with Optional Remote/Cloud Management The NETGEAR® MS510TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Pro Switch offers 295W PoE budget, 4 ports 1G/2.5G and 4 ports multi-gig/10G and 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXUP can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase.
- Multi-speed Ethernet ports for flexible and auto-adaptive wired connectivity of multi-Gigabit devices. - 2-port 10G SFP+ Fiber uplinks (1G/10GBASE-X fiber SFP+). - 295W future-proof PoE budget available across 8 Ultra60 PoE++ ports (802.3bt 60W/port). - Layer 3 static routing with 32 routes (IPv4 and IPv6). - Uninterrupted PoE and advanced per port PoE controls. - NETGEAR Insight Cloud management activation (1-Year Insight subscription is included). - Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings.
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | MS510TXUP-100EUS |
| Our part no. | CA66029 |
| EAN | 0606449152395 |
| Category | Networking › Switches |
| Weight | 3.8 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| System event log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission | |
| Switching capacity | 140 Gbit/s |
| MAC address table | 32000 entries |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 2 MB |
| Security | |
| DHCP features | DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | WRR+SP |
| Multicast features | |
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
| Design | |
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Activity, Fan fail, Link, PoE, Power, Speed |
| Number of fans | 3 fan(s) |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Noise level | 33 dB |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 1059519 h |
| Power | |
| Power supply included | Yes |
| Power consumption (max) | 380 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 295 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 1294.5888 BTU/h |
| Weight & dimensions | |
| Width | 330 mm |
| Depth | 206 mm |
| Height | 43 mm |
| Weight | 2.51 kg |
| Packaging content | |
| Cables included | AC |
| User guide | Yes |
| Packaging data | |
| Rack rails | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
