Description

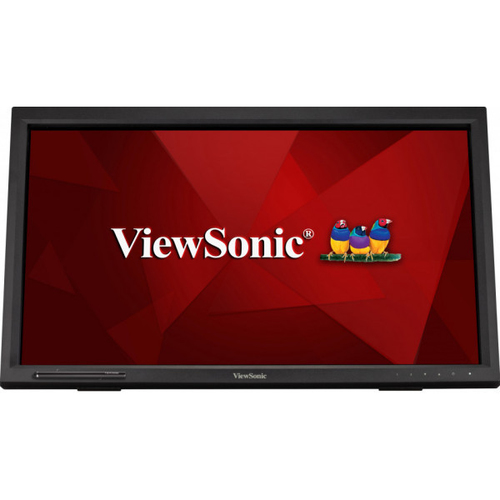

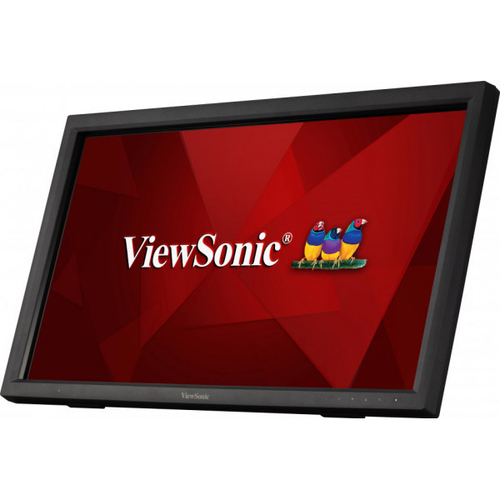

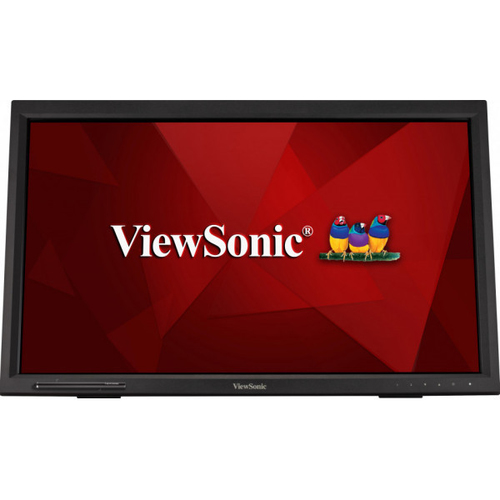

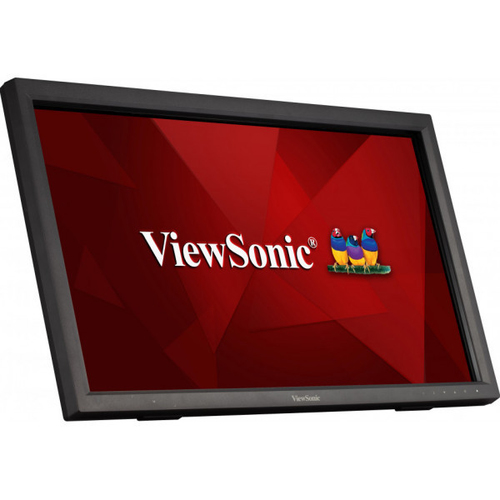

Viewsonic TD2423, 59.9 cm (23.6"), 1920 x 1080 pixels, Full HD, LED, 7 ms, Black
The ViewSonic® TD2423 is a 24” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2423 is equipped with VGA, HDMI, DVI and USB connectivity.
Intuitive Multi-touch Experience An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens. The TD2423 delivers an intuitive multi-touch experience with every tap, pinch, and swipe with the finger touch, gloved touch, and stylus inputs.
Operating System Support This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging and drawing. What’s more, there is a magnetic pen placeholder on the base.
Anti-scratch Touchscreen With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects. 7H Hardness Screen
Adjustable Tilt This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents. Full HD 1080p Resolution
Dual Integrated Speakers With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
Specifications
| Brand | VIEWSONIC |
|---|---|
| Manufacturer part no. | TD2423 |
| Our part no. | CA69878 |
| EAN | 0766907008654 |
| Category | Monitors & Displays › Other (0352) |
| Weight | 7 kg |
| Display | |
| Display diagonal | 59.9 cm (23.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | VA |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Touchscreen technology | Infrared |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 250 cd/m² |
| Response time | 7 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.271 x 0.271 mm |
| Digital horizontal frequency | 24 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Display diagonal (metric) | 59.94 cm |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | Yes |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Product colour | Black |
| Glass thickness | 1.85 mm |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Audio input | 1 |
| Audio output | 1 |
| HDCP | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Tilt angle range | 22 - 38° |
| Power | |
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Power consumption (typical) | 15.5 W |
| Power consumption (standby) | 0.2 W |
| Power consumption (max) | 16.5 W |
| Power consumption (off) | 0.1 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width (with stand) | 571 mm |
| Depth (with stand) | 101 mm |
| Height (with stand) | 348 mm |
| Weight (with stand) | 5.2 kg |
| Width (without stand) | 571 mm |
| Depth (without stand) | 61 mm |
| Height (without stand) | 348 mm |
| Weight (without stand) | 4.7 kg |
| Packaging data | |
| Package width | 645 mm |
| Package depth | 166 mm |
| Package height | 422 mm |
| Package weight | 7 kg |
| Packaging content | |
| Cables included | AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B |
| Sustainability | |
| Sustainability certificates | EPEAT Silver |
| Other features | |
| Display viewable area (HxV) | 521 x 293 mm |
| Weight | 5.2 kg |
| Compliance certificates | CE, REACH, RoHS |
| Certification | cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Silver, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP |
| Technical details | |
| Native refresh rate | 60 Hz |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 2.24 m |
| Harmonized System (HS) code | 8528521000 |
