Description

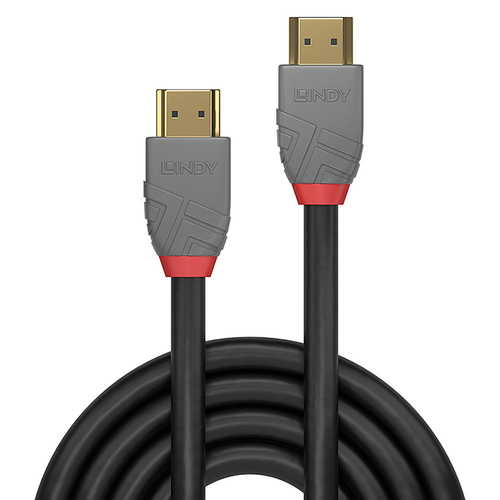

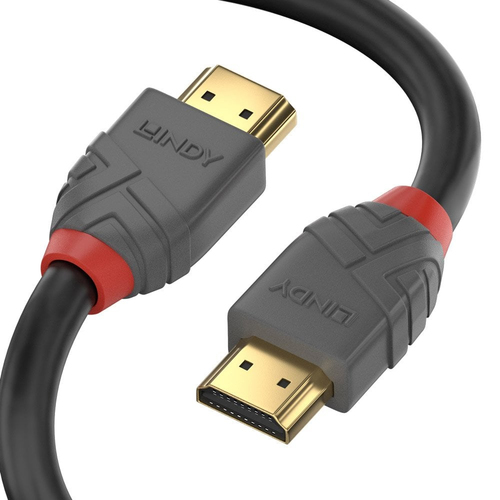

Lindy 15m Standard HDMI Cable, Anthra Line, 15 m, HDMI Type A (Standard), HDMI Type A (Standard), 3D, 10.2 Gbit/s, Black, Grey
From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.

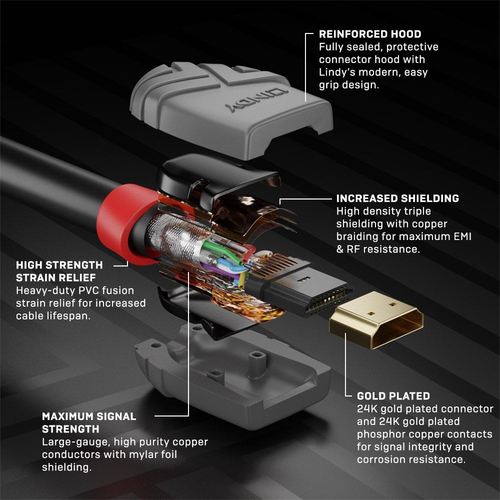

Anthra Line HDMI cables are premium connections that feature triple shielded with 24AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:2:0 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
These HDMI 2.0 cables support 10.2Gbps bandwidth capacity in cable lengths from 7.5m up to 20m.
Anthra Line HDMI cables are available in lengths from 0.3m to 20m.
Specifications
| Brand | LINDY ELECTRONICS |
|---|---|
| Manufacturer part no. | 36968 |
| Our part no. | CA70829 |
| EAN | 4002888369688 |
| Category | Cables & Adapters › VGA & Video Adapters |
| Weight | 1.7 kg |
| Features | |
| Cable length | 15 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black, Grey |
| HDMI version | 2.0 |
| 3D | Yes |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| Audio Return Channel (ARC) | Yes |
| Data transfer rate | 10.2 Gbit/s |
| Maximum refresh rate | 60 Hz |
| AWG wire size | 24 |
| Contact material | Phosphor bronze |
| Connector contacts plating | Gold |
| Connector housing material | Polyvinyl chloride (PVC) |
| Connector material | Gold |
| Cable material | Copper |
| Cable type | Round cable |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Shield material | Aluminium |
| Bend radius (min) | 9.8 cm |
| Colour sampling | 4:2:0 |
| Nominal attenuation | 300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | RoHS, REACH, UL |
| Weight & dimensions | |
| Cable diameter | 9.8 mm |
| Connector 1 dimensions (WxDxH) | 21.4 x 41.44 x 12.7 mm |
| Connector 2 dimensions (WxDxH) | 21.4 x 41.44 x 12.7 mm |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
