Lindy 100m USB 2.0 Cat.6 Extender

Description

Lindy 100m USB 2.0 Cat.6 Extender, Network transmitter & receiver, 100 m, 480 Mbit/s, Cat5e, Cat6, CH317Q, CH536G, Black

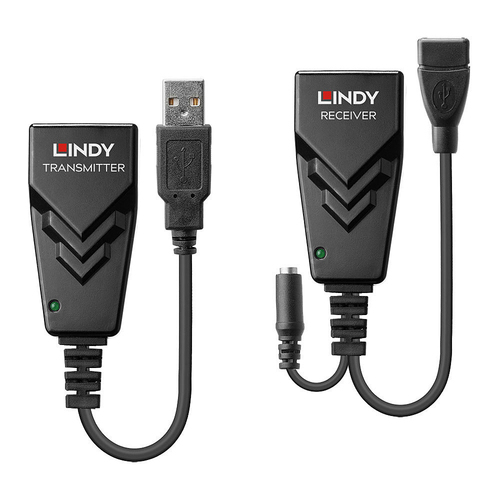

The Lindy 100m USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 100m. It consists of a transmitter unit which connects to the computer and a receiver unit that connects to the device. Standard Cat.5e/6 network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core patched cables.

For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required.

*Please Note: this extender might not support USB devices that require high bandwidths such as Full HD webcams.

Specifications

BrandLINDY ELECTRONICS
Manufacturer part no.42674
Our part no.CA70871
EAN4002888426749
CategoryCables & Adapters › VGA & Video Adapters
Weight0.3 kg
Performance
TypeNetwork transmitter & receiver
Maximum transfer distance100 m
Data transfer rate480 Mbit/s
Cable types supportedCat5e, Cat6
ChipsetCH317Q, CH536G
Ports & interfaces
RJ-45 ports quantity (transmitter)1
RJ-45 ports quantity (receiver)1
Design
Product colourBlack
Housing materialPlastic
CertificationCE, FCC, REACH, CP65
Power
Output voltage5 V
Output current2 A
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%
Weight & dimensions
Width36 mm
Depth22 mm
Height69 mm
Weight50 g
Packaging content
ManualYes
Packaging data
Package width200 mm
Package depth200 mm
Package height48 mm
Package weight250 g
Certificates
Compliance certificatesRoHS
Logistics data
Harmonized System (HS) code85176990
