Description

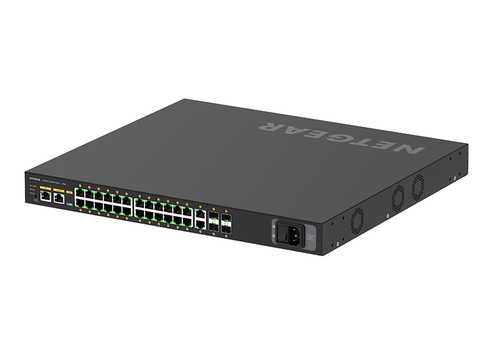

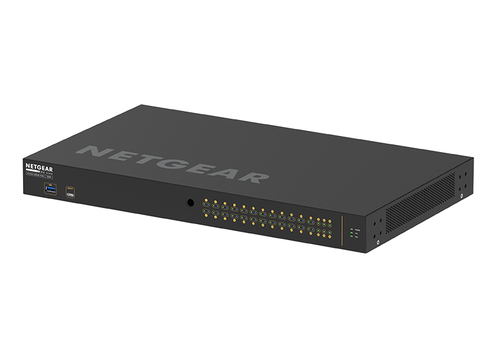

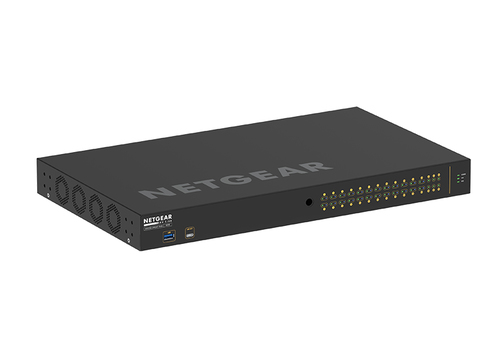

NETGEAR GSM4230P, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Pre-configured for out-of-the-box use NETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations Dedicated AV web-based GUI interface Unique interface designed for the AV professional with color-coded, port-based profiles Profiles for common audio protocols Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license Video profiles built-in Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed Unique Automatic Configuration Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
Multi-switch audio or single-switch video deployments 24x1G PoE+ with 300W PoE budget with 2x1G additional ports and 4xSFP 1G fiber uplinks
Layer 2/Layer 3 Switching Common Layer 2 and Layer 3 switching engine across all M4250 models
Control methods abound Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series
Standard network features Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | GSM4230P-100EUS |
| Our part no. | CA81332 |
| EAN | 0606449151671 |
| Category | Networking › Switches |
| Weight | 6 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 30 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Data transmission | |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Performance | |
| Noise level | 34 dB |
| Fanless | Yes |
| Power | |
| Power supply included | Yes |
| Power consumption (typical) | 401 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 300 W |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 257 mm |
| Height | 43.2 mm |
| Weight | 4.3 kg |
| Packaging content | |
| Cables included | AC, LAN (RJ-45), USB Type-C |
| User guide | Yes |
| Packaging data | |
| Rack rails | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
