Description

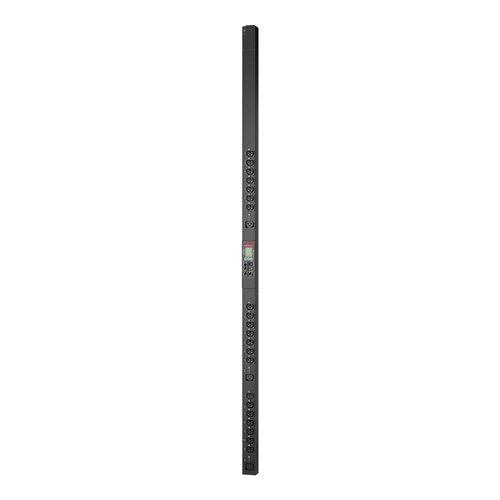

APC Rack PDU 9000 Switched, ZeroU, 20A, 208V, (21) C13/C15 & (3) C19/C21, L620 Cord, Switched, 0U, Vertical, Black, 24 AC outlet(s), C13 coupler, C15 coupler, C19 coupler, C21 coupler
It is a switched rack PDU with maximum current capacity of 20A and an input voltage of 208V. It features 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via an IEC 60320 L6-20P plug. This PDU is designed for ZeroU mounting.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | APDU9959NA3 |
| Our part no. | CA81518 |
| Category | Docks, Bags & Racks › Racks & Cabinets |
| Weight | 8.2 kg |
| Design | |
| PDU types | Switched |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | NEMA L6-20P |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Input connection type | IEC 60320 L6-20P |
| Power | |
| Nominal input voltage | 200; 208 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 200 - 208 V |
| Output voltage | 208 V; 200 V |
| Load capacity | 3300 VA |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | cUL listed; FCC part 15 class A; PSE |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 60 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Weight & dimensions | |
| Width | 55 mm |
| Depth | 46 mm |
| Height | 1797 mm |
| Weight | 5.61 kg |
| Packaging data | |
| Package weight | 7.86 kg |
| Package width | 165 mm |
| Package depth | 114 mm |
| Package height | 2002 mm |
| Technical details | |
| Sustainable packaging | No |
| Packaging recycled materials | Recycled cardboard |
| SCIP number | 31346aed-552c-4a16-81d9-e683a383b6da |
| Removable battery | Yes |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Logistics data | |
| Country of origin | India |
| Customs product code (TARIC) | 8537109899 |
| Total carbon footprint (kg of CO2e) | 1550.2280268984 |
| Warranty period | 3 year(s) |
