Description

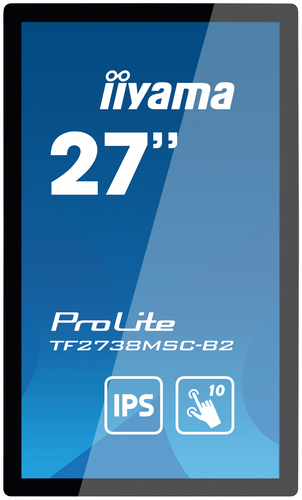

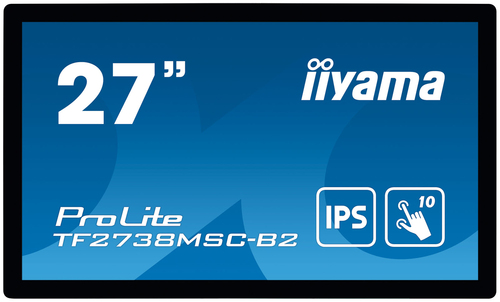

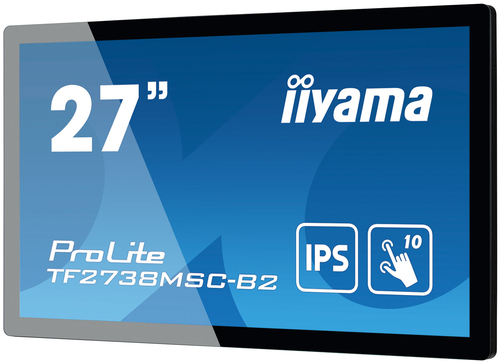

iiyama ProLite TF2738MSC-B2, 68.6 cm (27"), 1920 x 1080 pixels, Full HD, LED, 5 ms, Black
With 1920x1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite TF2738MSC-B2 delivers seamless and accurate touch response. Featuring IPS LED LCD Screen technology, it offers exceptional colour performance and wide viewing angles. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. In addition, the screen comes with an IPX1 rating, making it water resistant from the front. Equipped with speakers and triple digital input (DVI, HDMI and DisplayPort). The ProLite TF2738MSC-B2 is an ideal screen for kiosk integrators and a perfect solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations.
Specifications
| Brand | IIYAMA |
|---|---|
| Manufacturer part no. | TF2738MSC-B2 |
| Our part no. | CA86081 |
| EAN | 4948570118199 |
| Category | Monitors & Displays › Other (0352) |
| Weight | 10.1 kg |
| Display | |
| Display diagonal | 68.6 cm (27") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 500 cd/m² |
| Display brightness | 425 cd/m² |
| Response time | 5 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 12000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.311 x 0.311 mm |
| Horizontal scan range | 30 - 80 kHz |
| Viewable size, horizontal | 59.8 cm |
| Viewable size, vertical | 33.6 cm |
| Display diagonal (metric) | 68.6 cm |
| Surface hardness | 6H |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
| Operating hours (hours/days) | 16/7 |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 6 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 3.6 mm |
| Ports & interfaces | |
| USB Touch port | Yes |
| DVI port | Yes |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100,200 x 100 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian |
| Number of OSD languages | 8 |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 24 kWh |
| Power consumption (typical) | 25 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
| Width (with stand) | 648.5 mm |
| Depth (with stand) | 52 mm |
| Height (with stand) | 386.5 mm |
| Weight (with stand) | 8.3 kg |
| Width (without stand) | 648.5 mm |
| Depth (without stand) | 52 mm |
| Height (without stand) | 386.5 mm |
| Weight (without stand) | 8.3 kg |
| Bezel width (side) | 2.45 cm |
| Bezel width (top) | 2.4 cm |
| Bezel width (bottom) | 2.4 cm |
| Packaging data | |
| Package width | 746 mm |
| Package depth | 123 mm |
| Package height | 500 mm |
| Package weight | 9.4 kg |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | Yes |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| International Protection (IP) code | IP1X |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Display viewable area (HxV) | 597.6 x 336.2 mm |
| User controls | picture adjust (contrast, brightness, adv. contrast, ECO mode, OD) input select, audio adjust (volume, mute, audio input) colour adjust (cool, normal, warm, user colour, i-Style colour), information, manual image adjust (sharpness, video mode adjust, blue light reducer, X-res technology), setup menu (language select, OSD position, OSD time out, OSD background, opening logo, LED) memory recall |
| Placement supported | Horizontal/Vertical |
| Brightness | 425 cd/m² |
| Active display area (W x H) | 597.6 x 336.2 mm |
| Touch method | stylus, finger, glove (latex) |
| Bezel width | 2.4 cm |
| Weight | 8.3 kg |
| Height | 386.5 mm |
| Width | 648.5 mm |
| Depth | 52 mm |
| Control panel | Menu, Scroll up/ Audio, Scroll down/ i-Style colour, Select/ Input select, Power |
| Compliance certificates | CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Certification | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
| Technical details | |
| Native refresh rate | 60 Hz |
| Logistics data | |
| Products per pallet | 36 pc(s) |
| Pallet net width | 74.7 cm |
| Pallet net length | 2 m |
| Pallet net height | 110.7 cm |
| Harmonized System (HS) code | 85285210 |
