Description
Lindy 300m Cat.6 2 Port VGA Receiver, VGA, VGA, 1920 x 1080 pixels, Black, Full HD, 300 m
VGA extenders distribute analogue video content across longer distances into multiple locations, using standard network cabling.

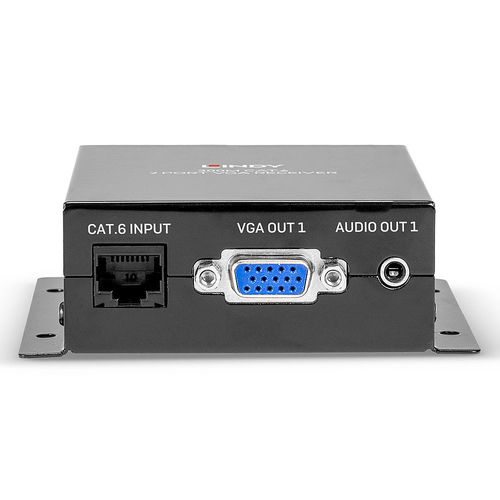

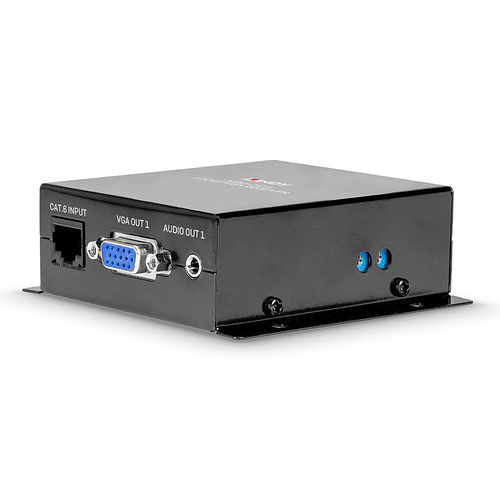

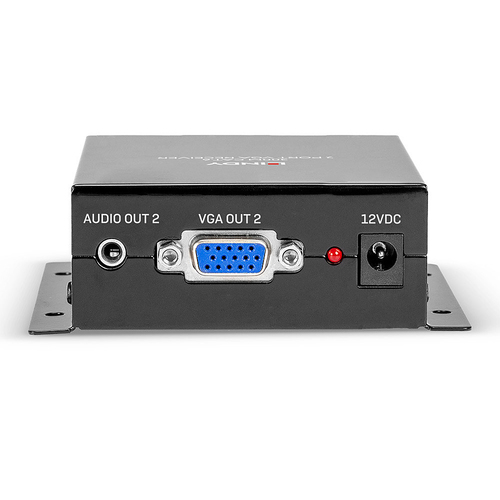

The Lindy 300m Cat.6 2 Port VGA Receiver is an ideal solution for distributing VGA signals to a single, or dual separate VGA display. Connected to the compatible transmitter (35403) via standard network cable, this receiver provides transmission of VGA signals up to 1920x1080, great for creating 4 separate distribution zones, such as classrooms or in security facilities. Dual VGA output ports allow for the connection of 2 separate VGA displays or projectors at the receiver side, useful when presenting information across multiple screens whether in monitoring and control, or smaller retail setups. 3.5mm dual mono audio connections also ensure speakers can be connected for supporting video content with high quality clear audio.
EQ and gain controls, for sharpness and brightness, can be easily adjusted to ensure the optimum picture quality is always shown .
The receiver has a robust metal housing with mounting brackets, providing additional protection against accidental damage, ideal for use in industrial installations.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 35404 |
| Our part no. | CA95553 |
| Category | Cables & Adapters › HDMI Cables & Extenders |
| Weight | 0 kg |
| Ports & interfaces | |
| Video port type | VGA |
| Video out | VGA |
| Ethernet LAN (RJ-45) ports | 4 |
| Video ports quantity | 1 |
| Audio ports quantity | 1 |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Maximum resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Maximum operating distance | 300 m |
| LED indicators | Yes |
| Network | |
| Cable types supported | Cat5e, Cat6 |
| Power | |
| AC input voltage | 12 V |
| Input current | 1.2 A |
| Weight & dimensions | |
| Width | 135.4 mm |
| Depth | 73 mm |
| Height | 31 mm |
| Weight | 484 g |
| Packaging data | |
| Package width | 177 mm |
| Package depth | 110 mm |
| Package height | 75 mm |
| Package weight | 547 g |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Technical details | |
| Compliance certificates | REACH, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
